Standard Shape 24VDC and 240VAC Neon Flex
Standard Shape 24VDC and 240VAC Neon Flex
Standard Shape 24VDC and 240VAC Neon Flex
Standard Shape 24VDC and 240VAC Neon Flex
Standard Shape 24VDC and 240VAC Neon Flex
Standard Shape 24VDC and 240VAC Neon Flex
Standard Shape 24VDC and 240VAC Neon Flex

Standard Shape 24VDC and 240VAC Neon Flex

Regular price
From: £13.95
Sale price
£13.95
Shipping calculated at checkout.
Quantity must be 1 or more

Accessories

The compatible accessories for this product

24v Waterproof Power Supplies
SMD 24VDC Fixings
Standard End Caps
Standard Pins
Heat Shrink
24VDC Front Connector
240VAC Front Connector
Smart Wireless Remote Controls/Receiver
Pin Connectors
Waterproof Options
Description
Specification
Description

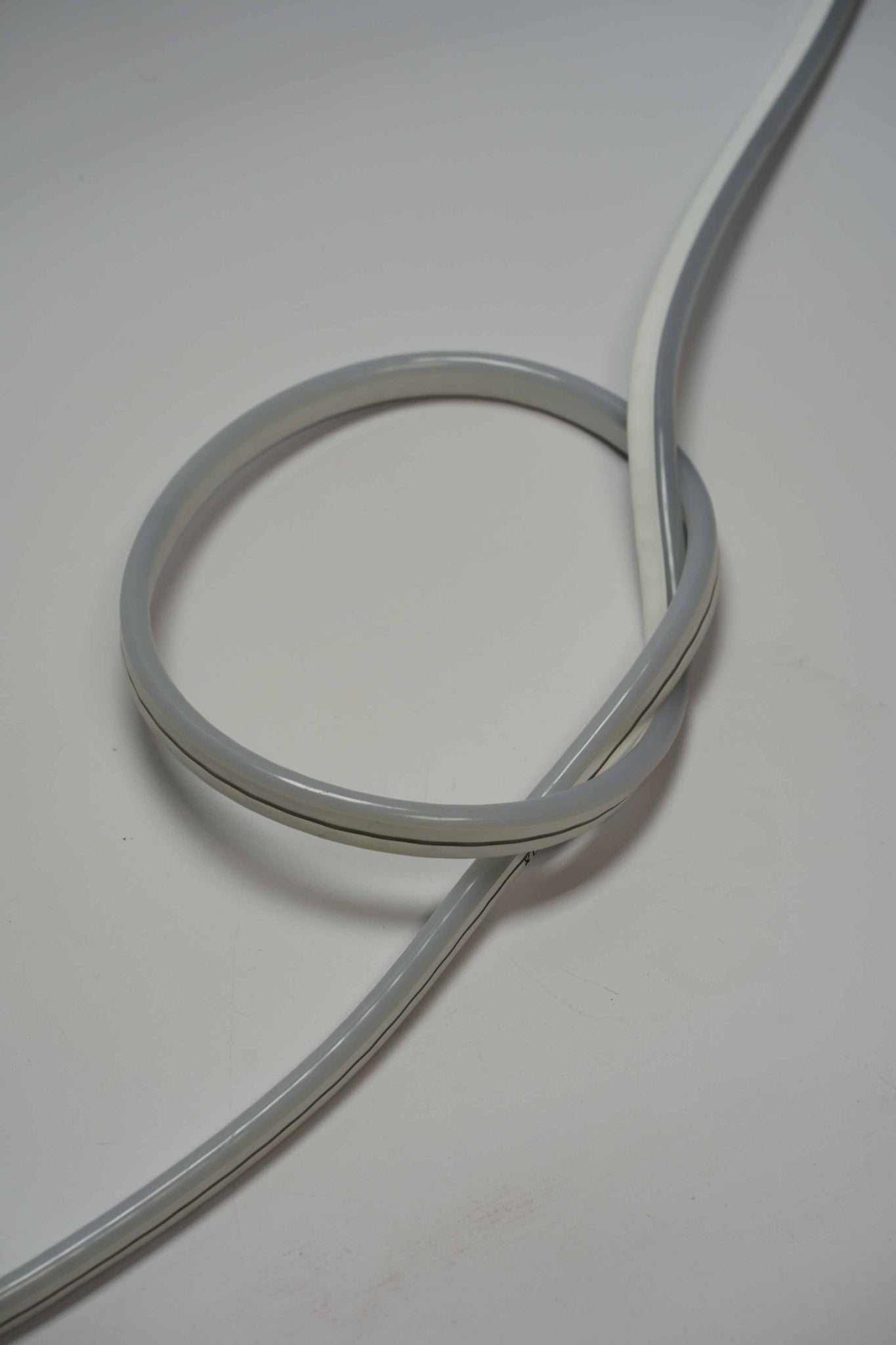

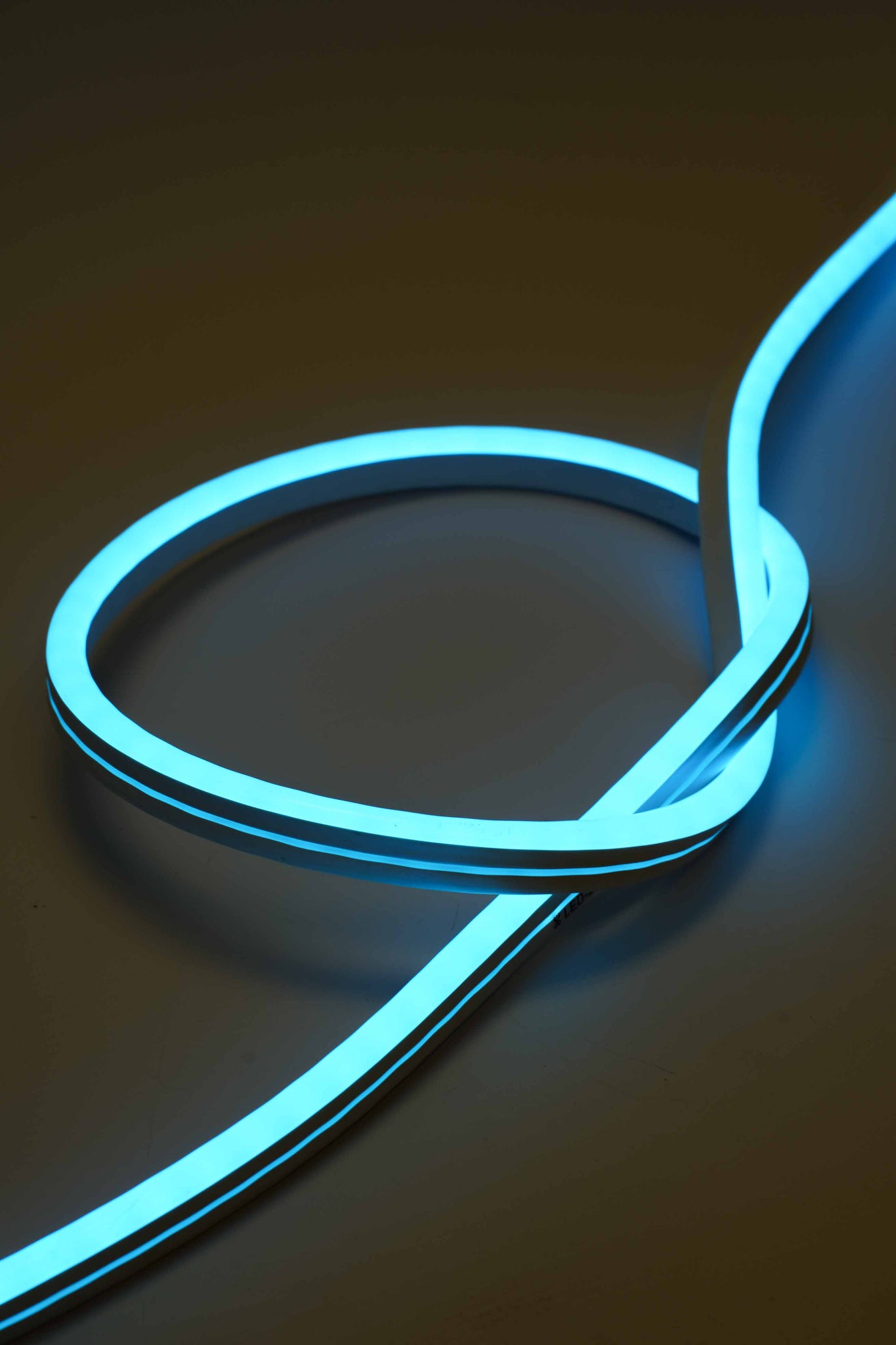

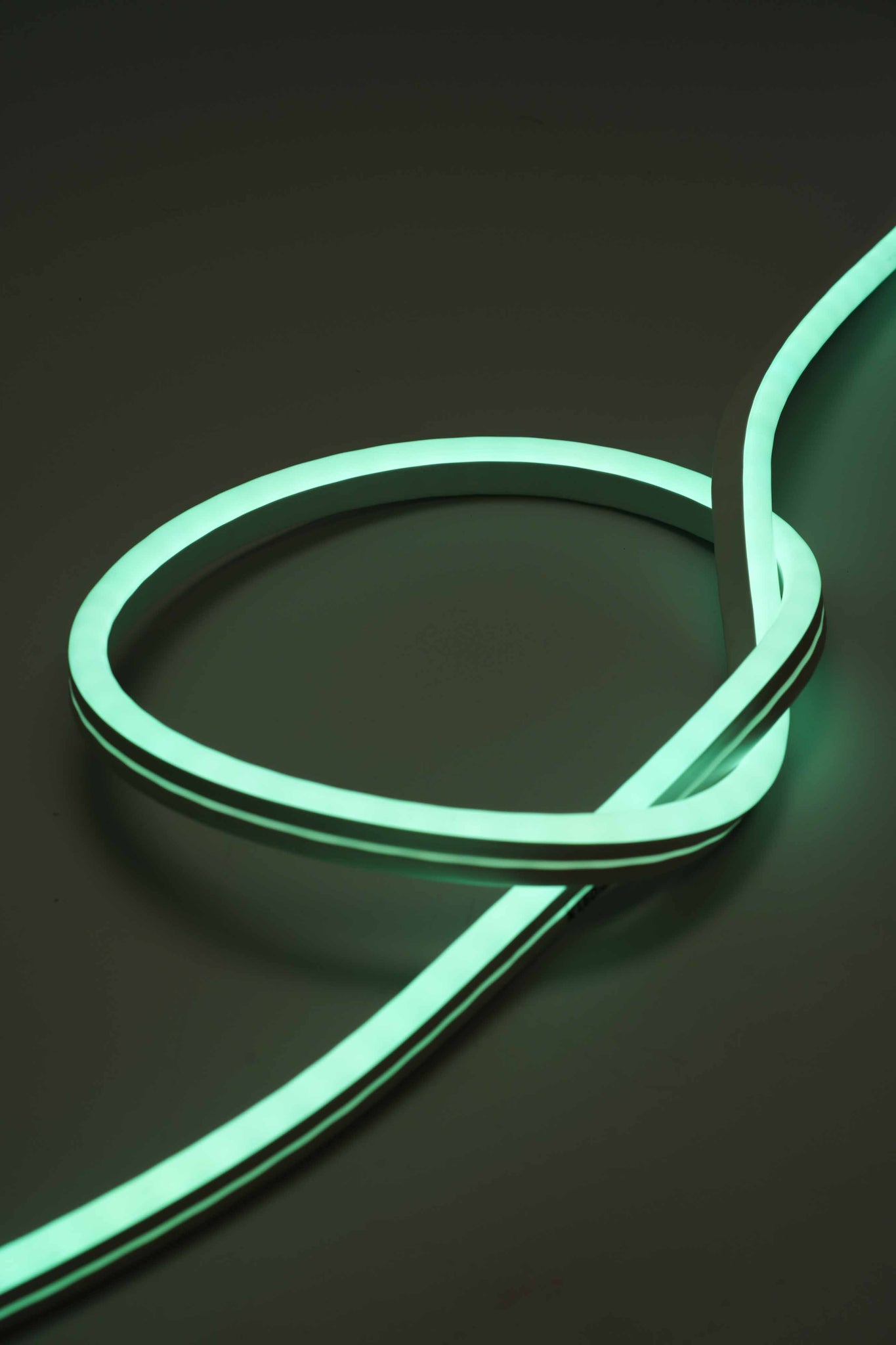

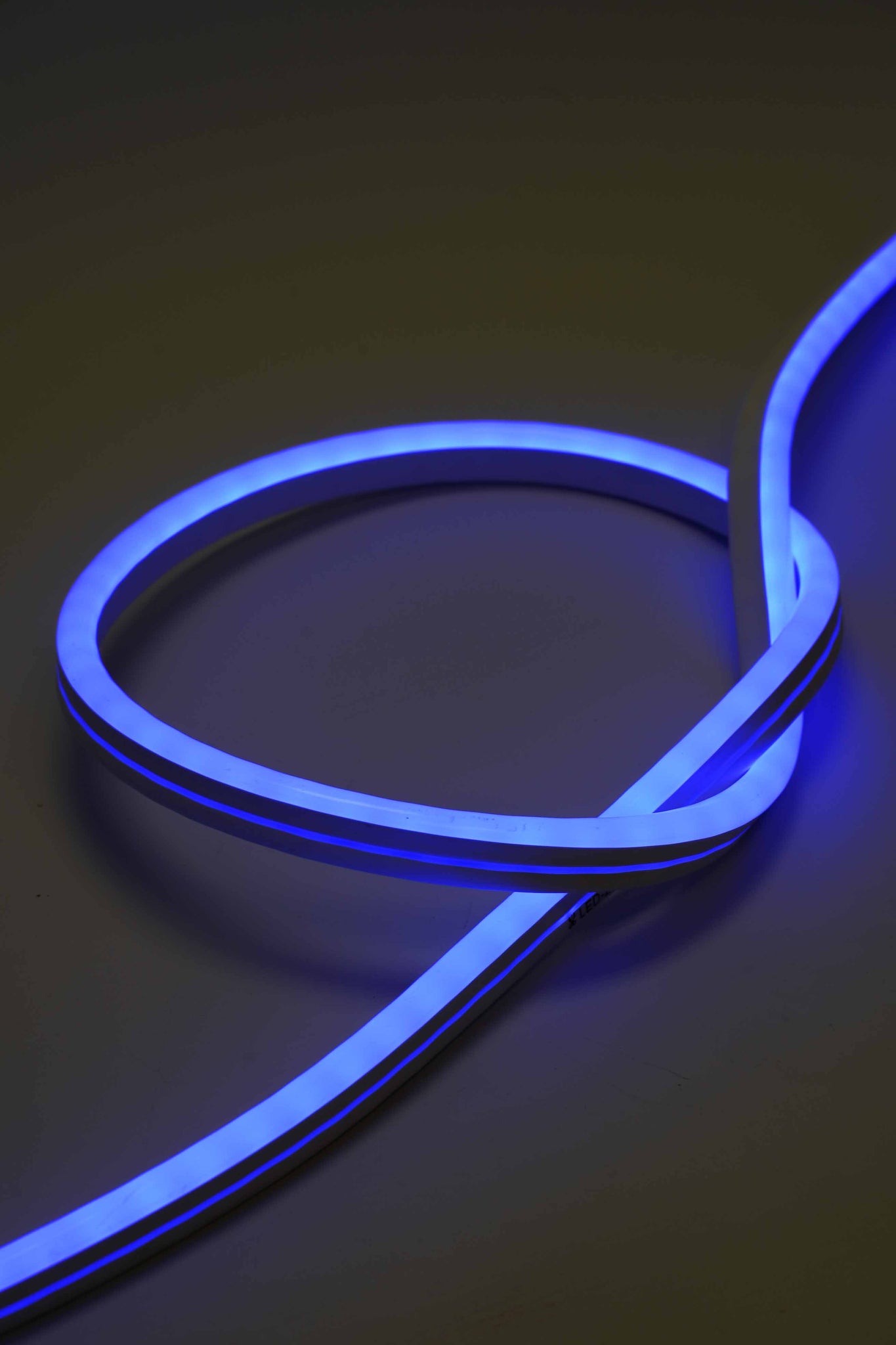

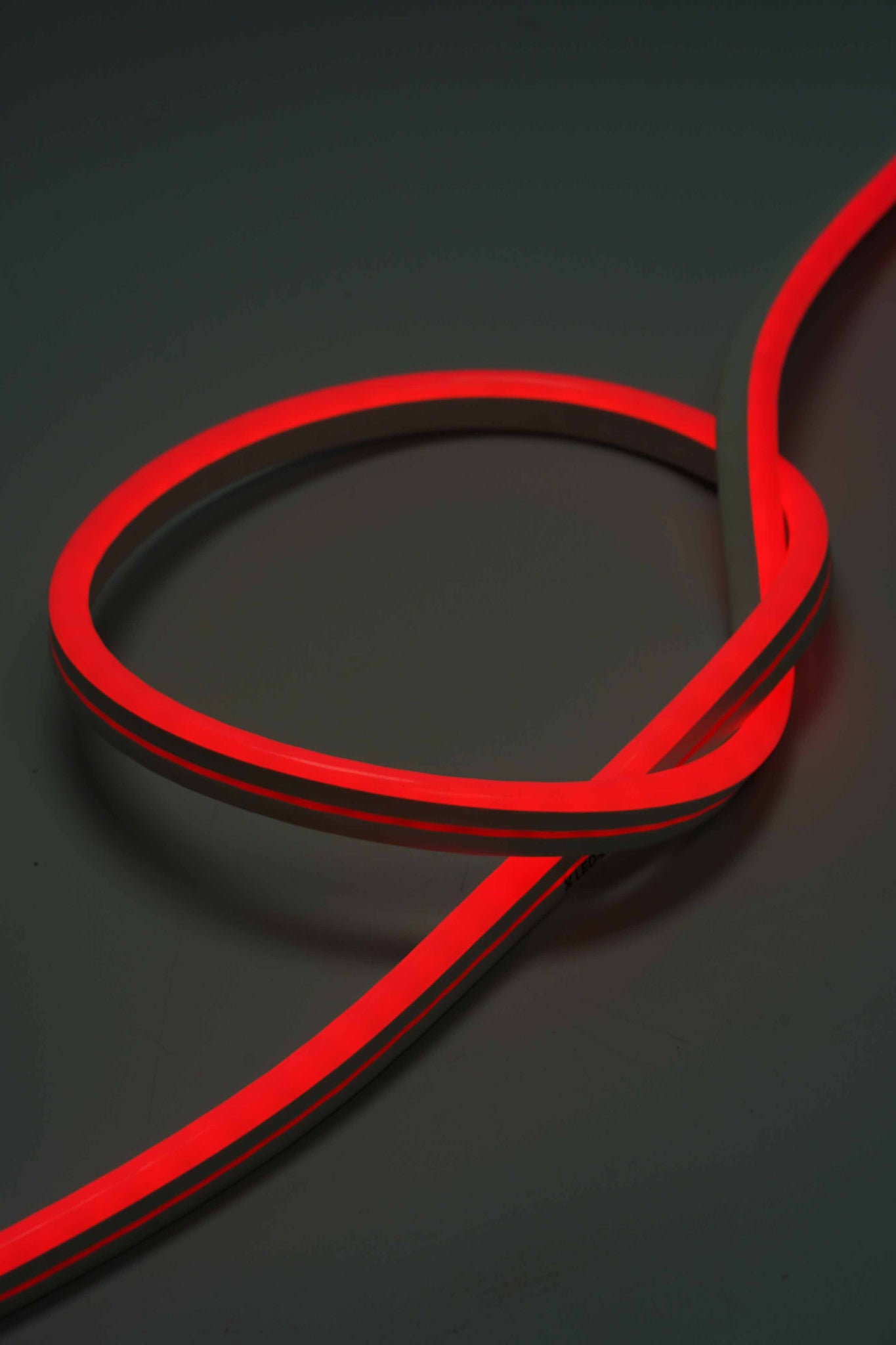

26*14mm Neon Flex is a reliable source of lighting for architectural, decorative and advertising spaces. With a tight minimum bend radius this Neon Flex can have long straight runs and tight curves. Bright and long lasting, with regular cutting increments (every 150mm), this Neon Flex really delivers for your lighting installations.
  • 26 x 14mm
  • 10w per metre
  • 120 LEDs per metre
  • 24v 20m max run length, 240v 50m max run length
  • We stock a wide range of accessories to power and mount this Neon Flex
  • 350 lumens per metre

Accessories for SMD Neon Flex can be found here and power supplies can be found here.

Neon Flex Type Standard shape 14*26mm Mini 8*15mm 360 17mm Diameter Mini Pro 8*15mm
Lifespan 50,000-80,000 Hrs 50,000-80,000 Hrs 50,000-80,000 Hrs 50,000-80,000 Hrs
Waterproof IP68 (Note all joins must be waterproof) IP68 (Note all joins must be waterproof) IP68 (Note all joins must be waterproof) IP68 (Note all joins must be waterproof)
LED's Per Metre 120 120 120 120
Power Consumption 240VAC & 24VDC = 10W 24VDC 10W 240VAC & 24VDC = 10W 24VDC 10W
Size (MM) 26*14mm 8*15mm 17mm diameter 8*15mm
Cutting Unit

 240VAC = 914 mm /

24VDC = 152.4 mm

24VDC 50mm (min length of 150mm)

240VAC 750mm/

24VDC 62.5mm

24VDC 50mm (min length of 50mm)
Lumens (Metre) 240VAC =400/24VDC = 350 370 480 370

Remote

/Dimmable

Yes Yes Yes Yes
Max Run Length 240VAC 120m/24DVC 20m 20m

240VAC 120m/

24VDC 20m

20m
Price (Metre) 240VAC £13.30 + VAT/24VDC £13.95 + VAT £10.80 + VAT

240VAC £13.50 + VAT/

24VDC £13.50 + VAT

£12.80 + VAT
The following video shows the accessories and method to set up this type of Neon Flex
