- Priced Per Metre
- 8x15mm
- 50mm minimum working length
- 50mm cut lengths
- 24VDC
- 120 LED's per meter
- 10w per meter

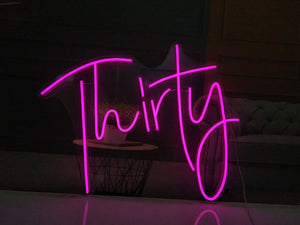

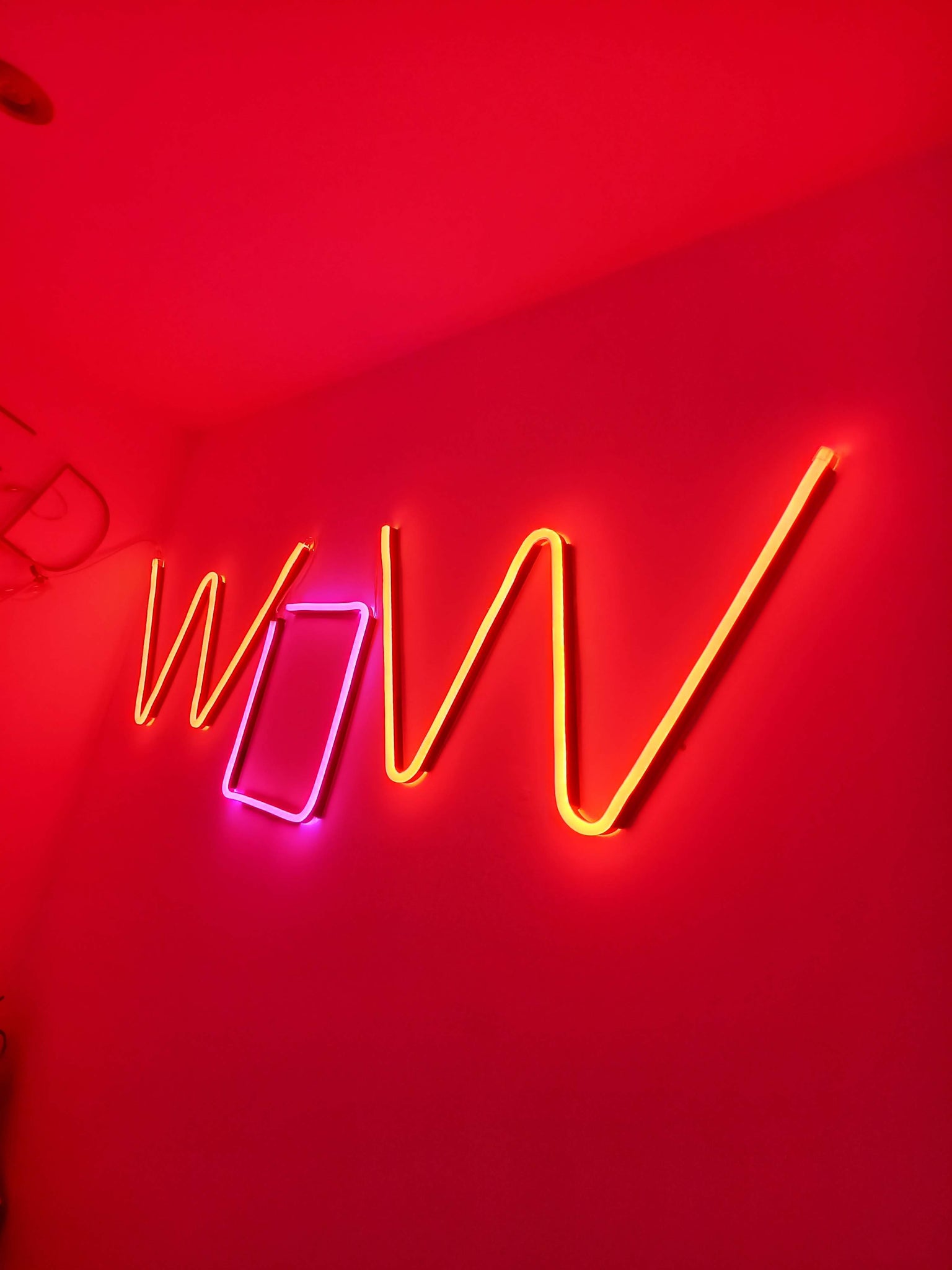

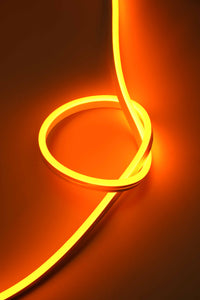

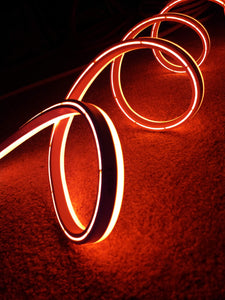

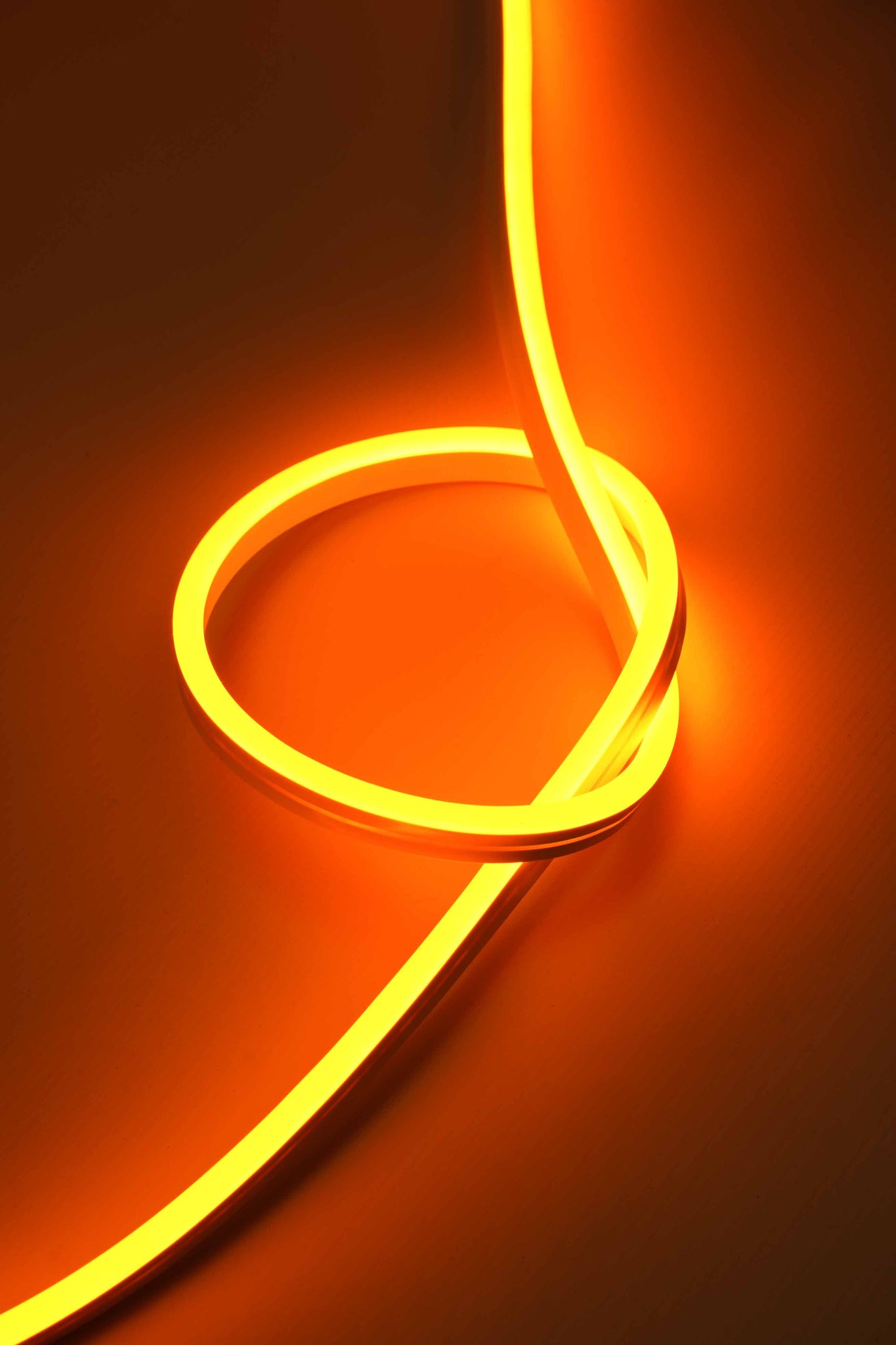

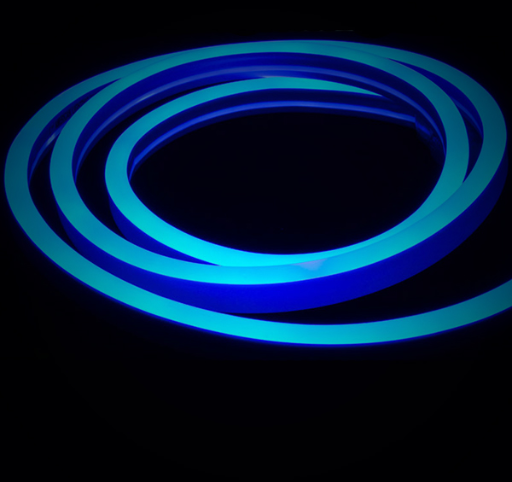

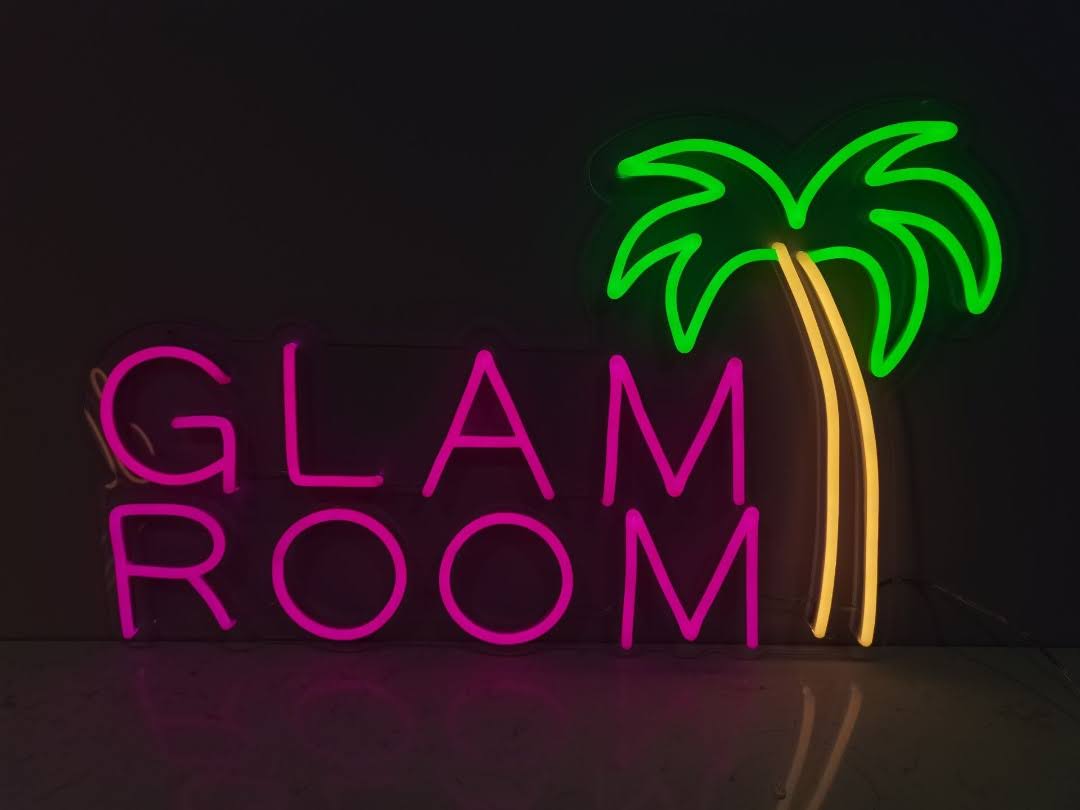

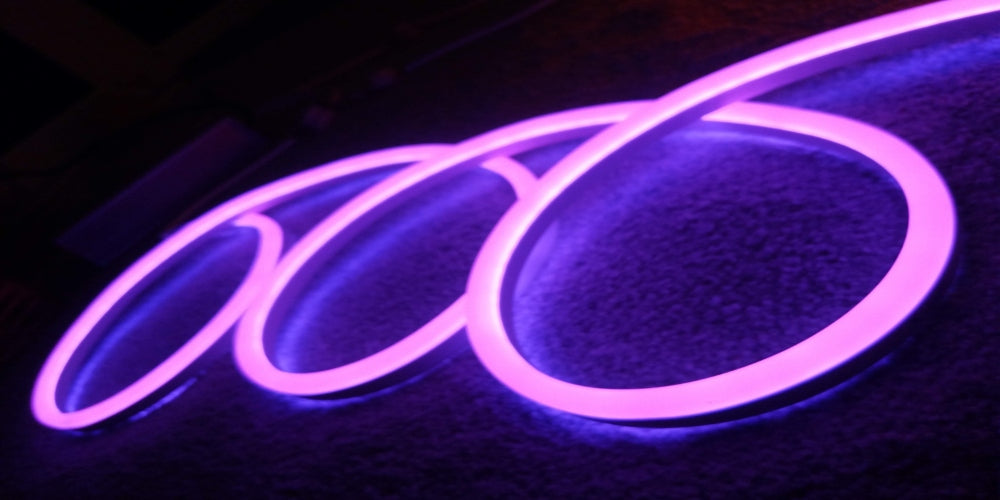

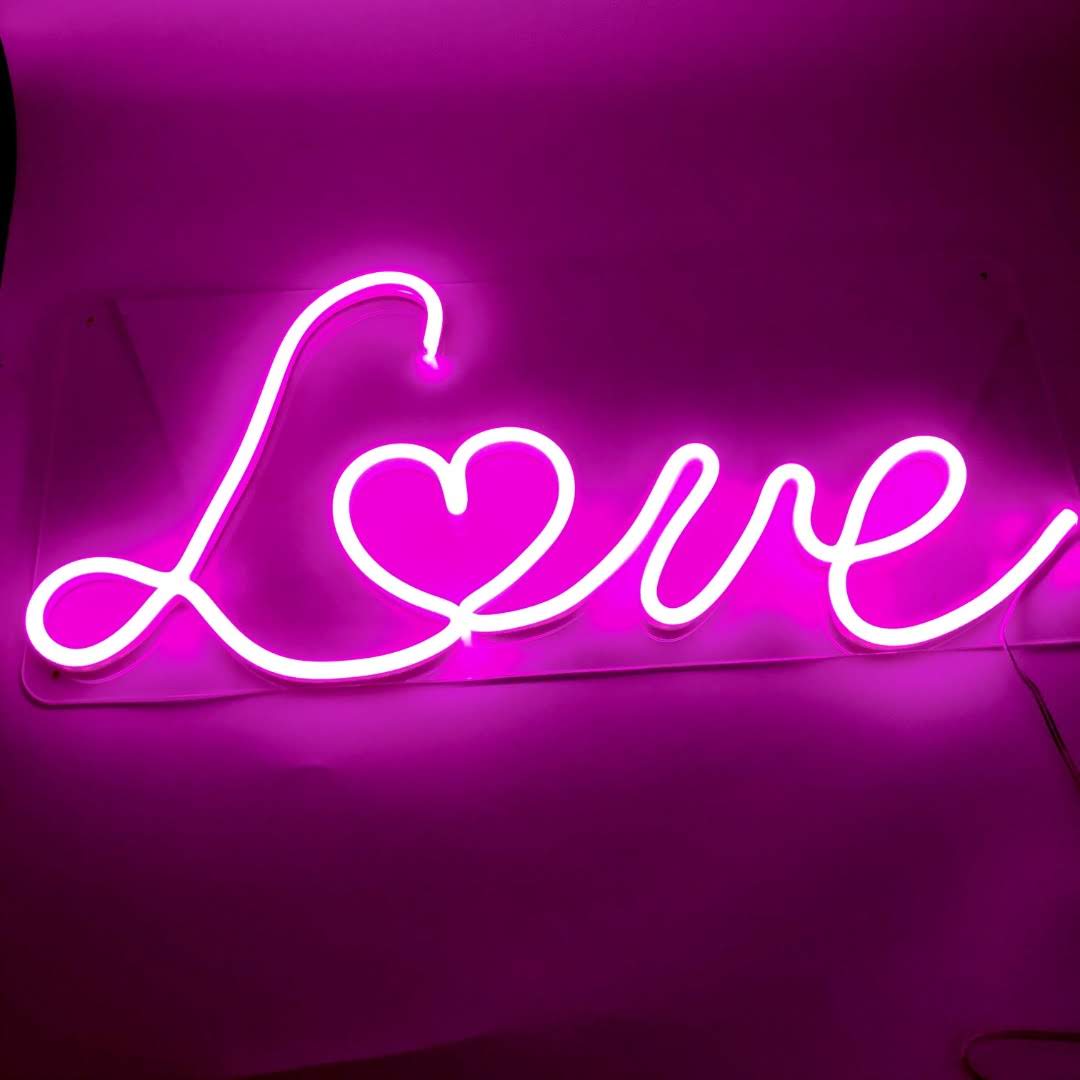

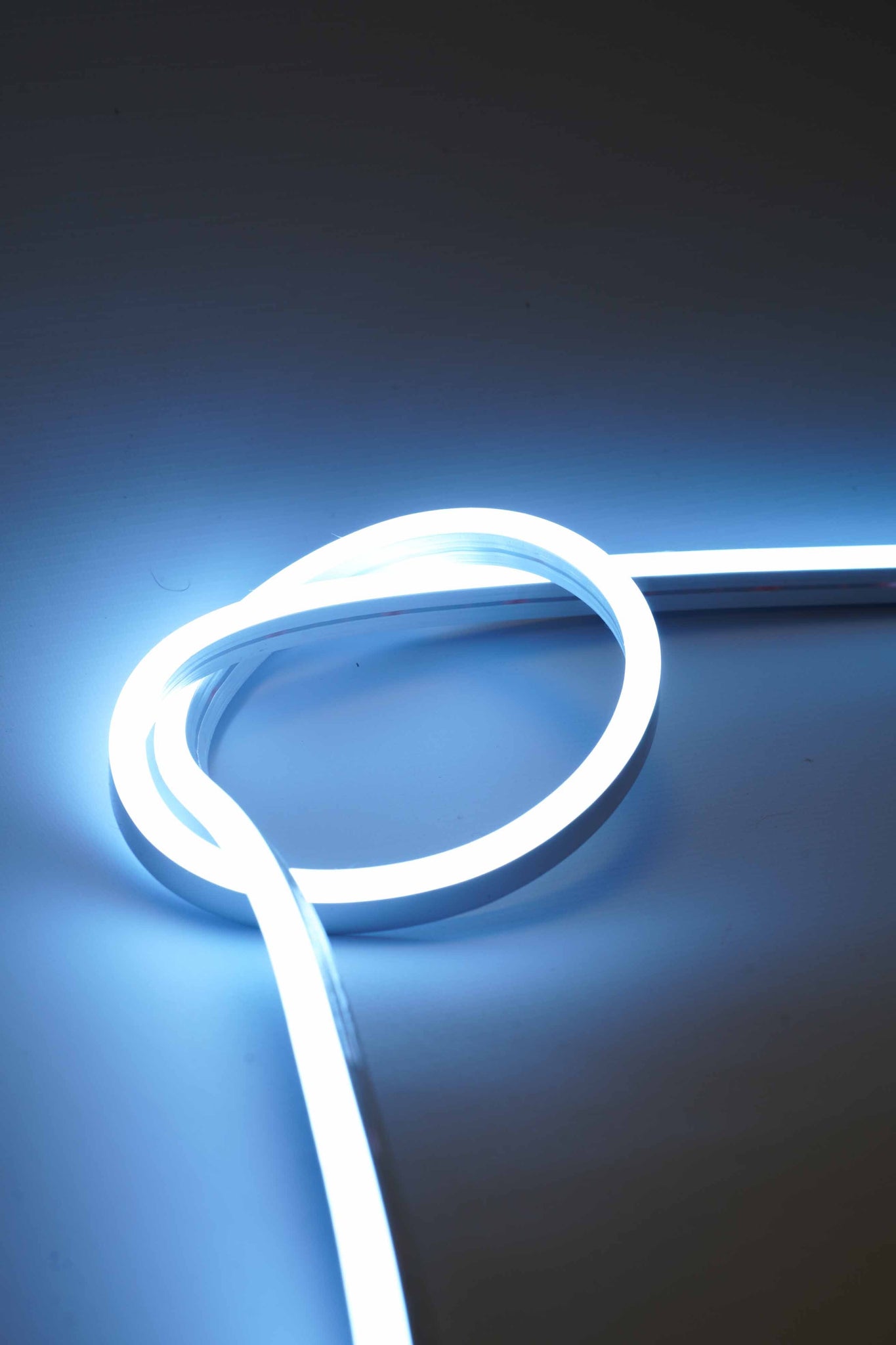

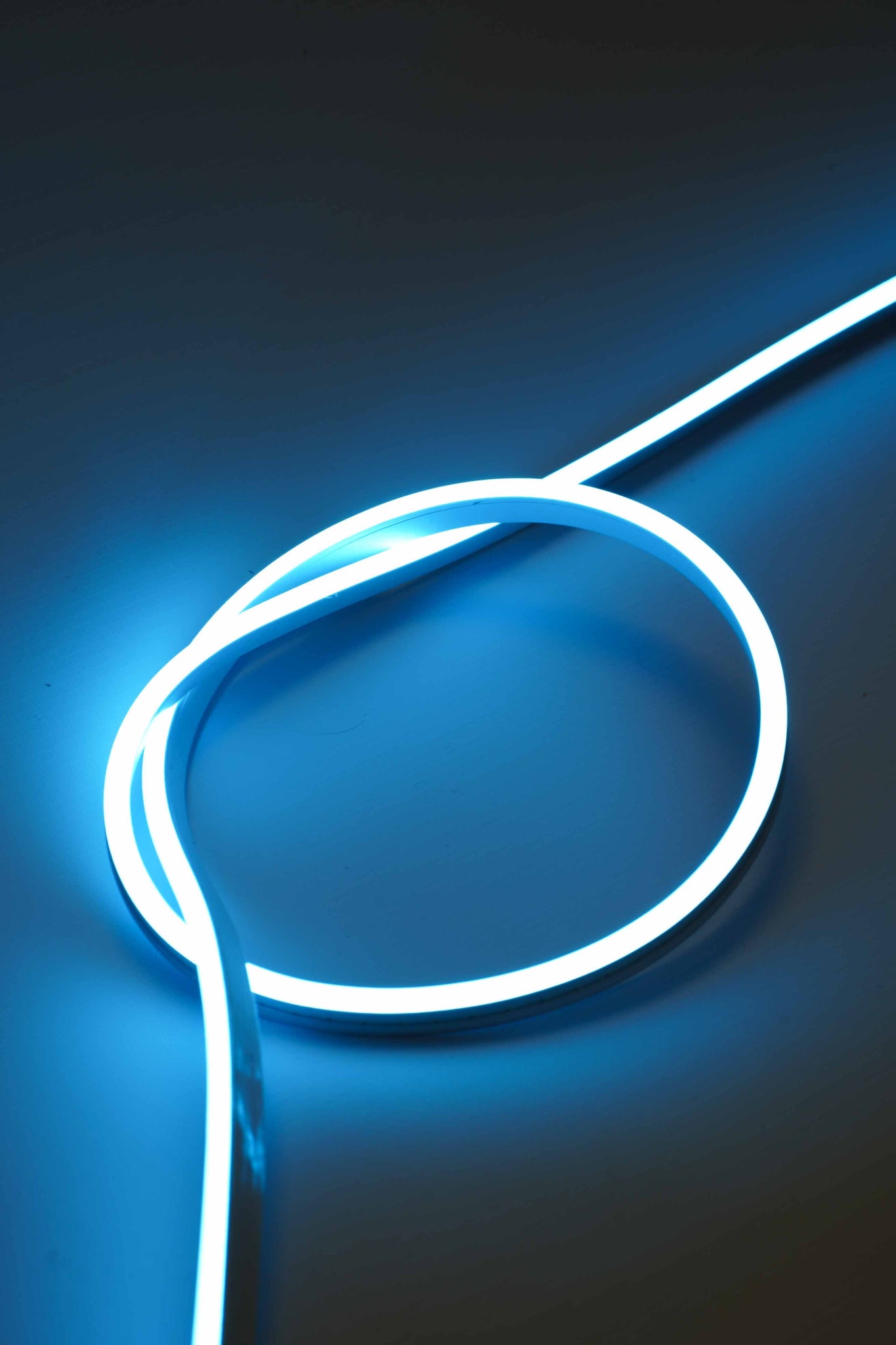

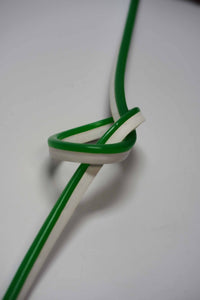

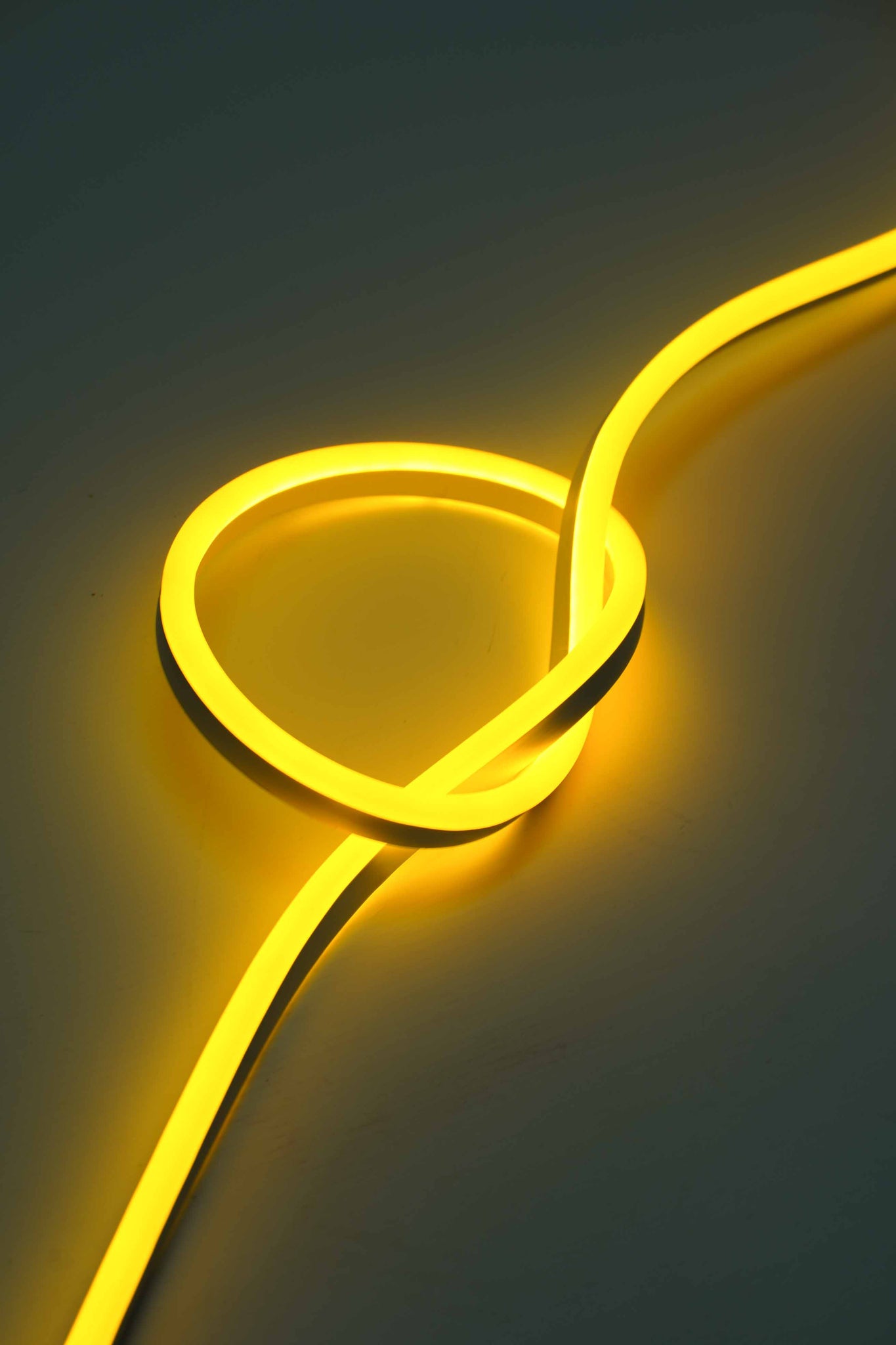

- Images of our Mini/Mini Pro Neon Flex in use
- Video Introduction of our Mini Pro Neon Flex
- Guide: How to make a Neon sign
Contact us on sales@ddsukltd.com or call 01489 570780 for any help with your order.
Mini/Mini Pro accessories can be found here and power supplies for Neon Flex/Led Strip can be found here.
Mini Pro Neon Flex is 24v, with dimensions of 8*15mm. This product can be cut every 50mm and has a minimum working length of 50mm. This is ideal for creating intricate sign design, set design and exhibition pieces. Mini Pro Neon Flex has a minimum bend radius of 30mm which is ideal for intricate design and lettering, as well as other tight angles.
Mini Pro Neon Flex is 10w per metre, so when purchasing a power supply multiple 10w x The number of metres of Neon Flex to be run and then go to the next power supply level up.
A custom Neon Flex length cutting, connecting and waterproofing service is available, talk to us about this to find out more about this service.
Specification
| Neon Flex Type | Standard shape 14*26mm | Mini 8*15mm | 360 17mm Diameter | Mini Pro 8*15mm |
| Lifespan | 50,000-80,000 Hrs | 50,000-80,000 Hrs | 50,000-80,000 Hrs | 50,000-80,000 Hrs |
| Waterproof | IP68 (Note all joins must be waterproof) | IP68 (Note all joins must be waterproof) | IP68 (Note all joins must be waterproof) | IP68 (Note all joins must be waterproof) |
| LED's Per Metre | 120 | 120 | 120 | 120 |
| Power Consumption | 240VAC & 24VDC = 10W | 24VDC 10W | 240VAC & 24VDC = 10W | 24VDC 10W |
| Size (MM) | 26*14mm | 8*15mm | 17mm diameter | 8*15mm |
| Cutting Unit |
240VAC = 914 mm / 24VDC = 152.4 mm |
24VDC 50mm (min length of 150mm) |
240VAC 750mm/ 24VDC 150mm |
24VDC 50mm (min length of 50mm) |
| Lumens (Metre) | 240VAC =400/24VDC = 350 | 370 | 480 | 370 |
|
Remote /Dimmable |
Yes | Yes | Yes | Yes |
| Max Run Length | 240VAC 120m/24DVC 20m | 20m |
240VAC 120m/ 24VDC 20m |
20m |
| Custom Colour Temperature Cutting Unit | 100mm | 200mm | 100mm | 100mm |
| Price (Metre) | 240VAC £12.80 + VAT/24VDC £13.70 + VAT | £10.30 + VAT |
240VAC £12.00 + VAT/ 24VDC £13.00 + VAT |
£12.20 + VAT |
