- Priced Per Metre
- 8x15mm
- 150mm minimum working length
- 50mm cut lengths
- 24VDC
- 120 LED's per meter
- 10w per meter

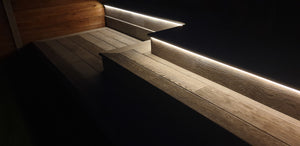

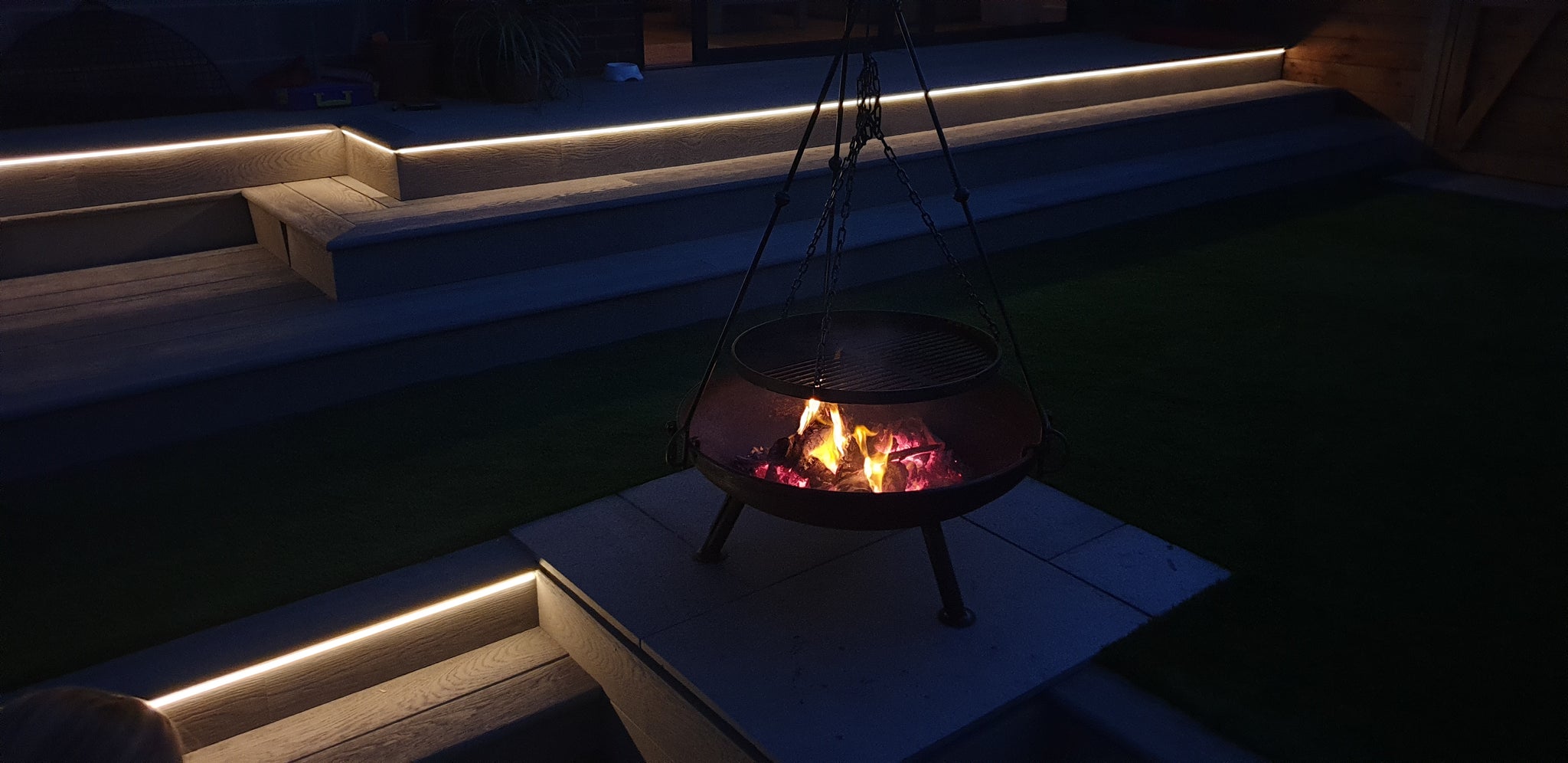

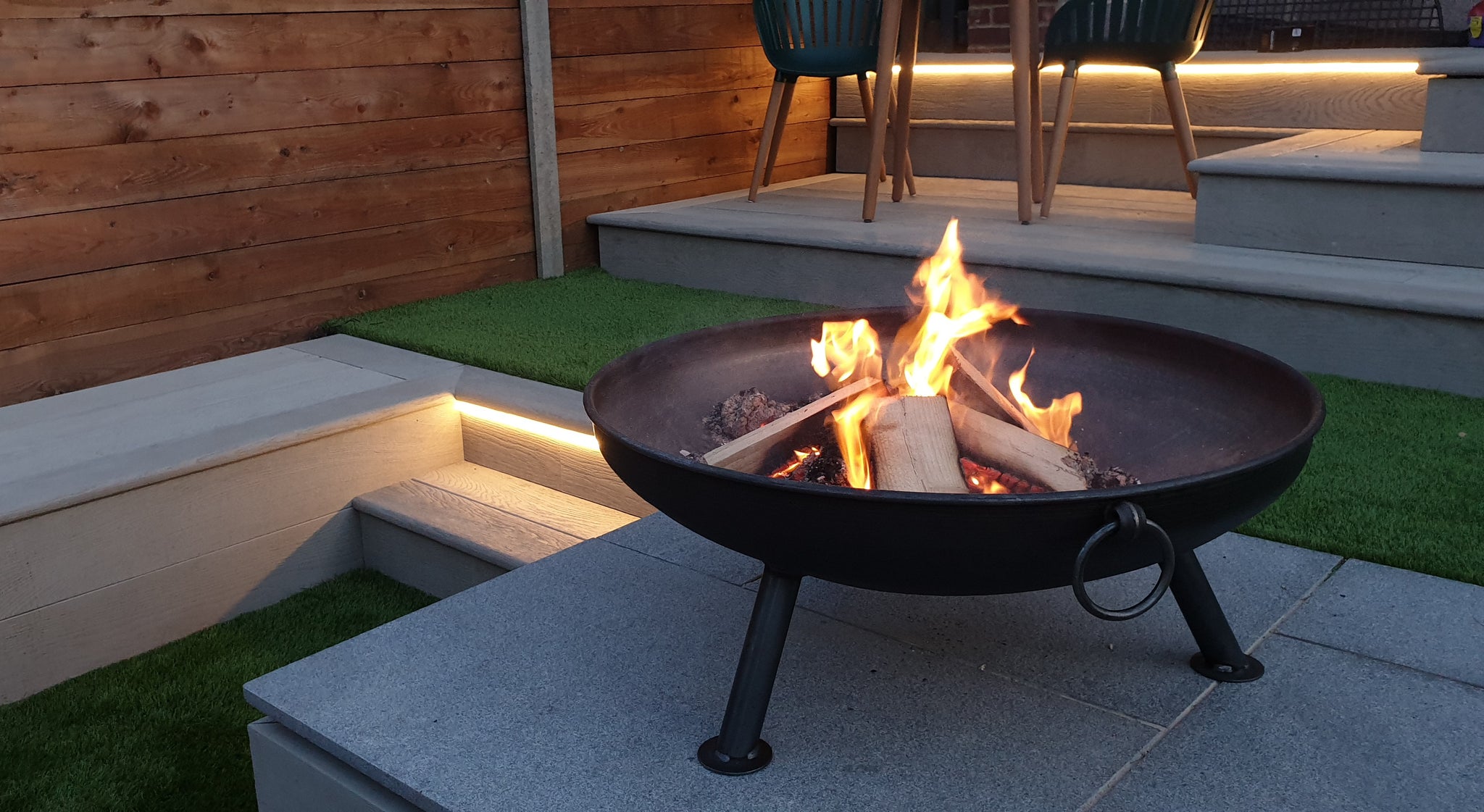

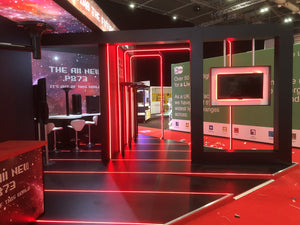

- Images of our Mini/Mini Pro Neon Flex in use
- Video Introduction of our Mini Neon Flex
- Guide: How to make a Neon sign

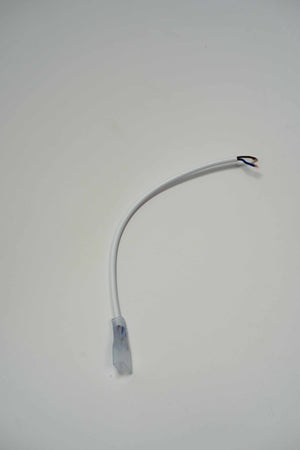

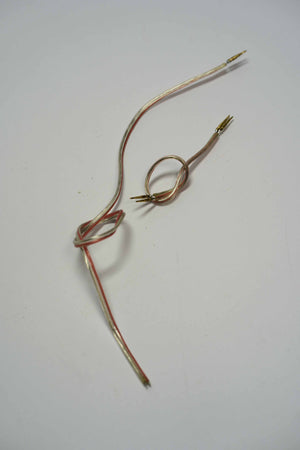

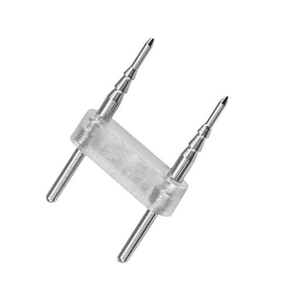

Mini/Mini Pro accessories can be found here and power supplies for Neon Flex/Led Strip can be found here.

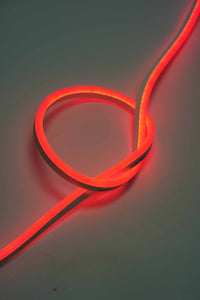

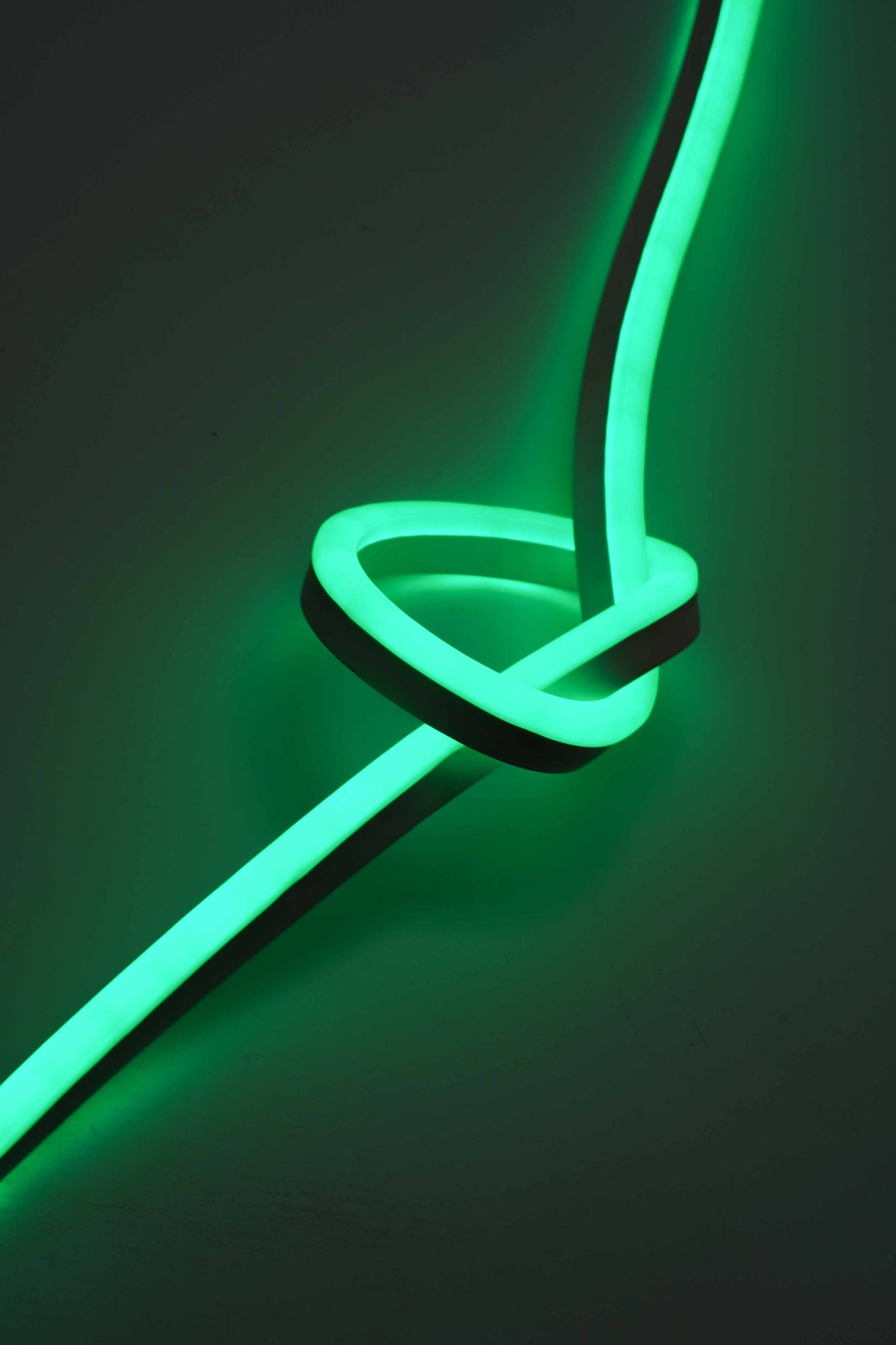

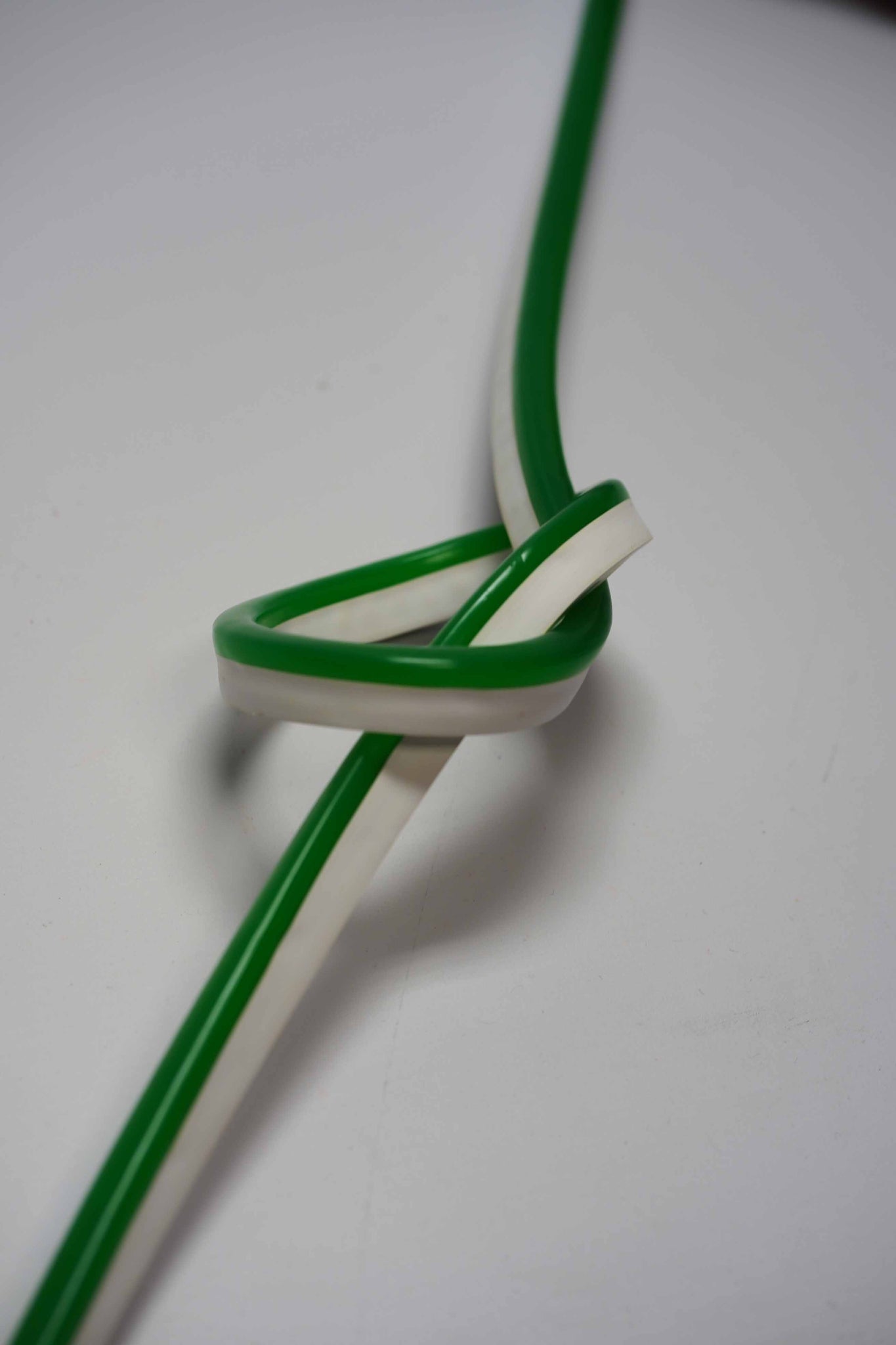

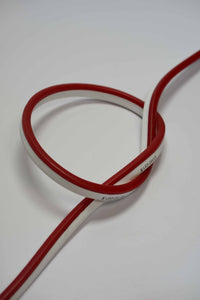

Mini Neon Flex is 24v, with dimensions of 8*15mm. This product can be cut every 50mm and has a minimum working length of 150mm. This is ideal for creating larger sign design, set design and exhibitions, as well as for long-run lengths to illuminate larger spaces. Our Mini Pro Neon Flex is the same as this product but has a minimum working length of 50mm.

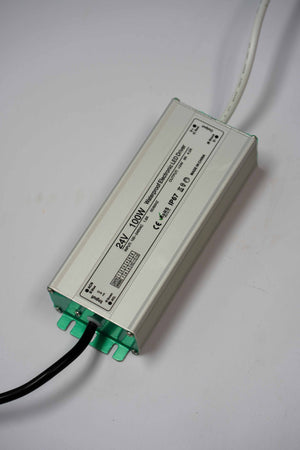

Mini Neon Flex is 10w per metre, so when purchasing a power supply multiple 10w x The number of metres of Neon Flex to be run and then go to the next power supply level up. e.g. If ordering 3m of Neonflex, 10w x 3m = 30w, so select the 45w Power Supply.
with this product for In-Store Lighting Design| Neon Flex Type | Standard shape 14*26mm | Mini 8*15mm | 360 17mm Diameter | Mini Pro 8*15mm |
| Lifespan | 50,000-80,000 Hrs | 50,000-80,000 Hrs | 50,000-80,000 Hrs | 50,000-80,000 Hrs |
| Waterproof | IP68 (Note all joins must be waterproof) | IP68 (Note all joins must be waterproof) | IP68 (Note all joins must be waterproof) | IP68 (Note all joins must be waterproof) |
| LED's Per Metre | 120 | 120 | 120 | 120 |
| Power Consumption | 240VAC & 24VDC = 10W | 24VDC 10W | 240VAC & 24VDC = 10W | 24VDC 10W |
| Size (MM) | 26*14mm | 8*15mm | 17mm diameter | 8*15mm |
| Cutting Unit |
240VAC = 914 mm / 24VDC = 152.4 mm |
24VDC 50mm (min length of 150mm) |
240VAC 750mm/ 24VDC 150mm |
24VDC 50mm (min length of 50mm) |
| Lumens (Metre) | 240VAC =400/24VDC = 350 | 370 | 480 | 370 |
|

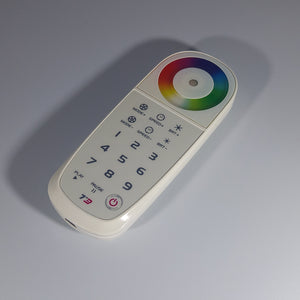

Remote /Dimmable |
Yes | Yes | Yes | Yes |
| Custom Colour Temp Cutting Length | 100mm | 200mm | 100mm | 100mm |
| Max Run Length | 240VAC 120m/24DVC 20m | 20m |
240VAC 120m/ 24VDC 20m |
20m |
| Price (Metre) | 240VAC £12.80 + VAT/24VDC £13.70 + VAT | £10.30 + VAT |
240VAC £12.00 + VAT/ 24VDC £13.00 + VAT |
£12.80 + VAT |
