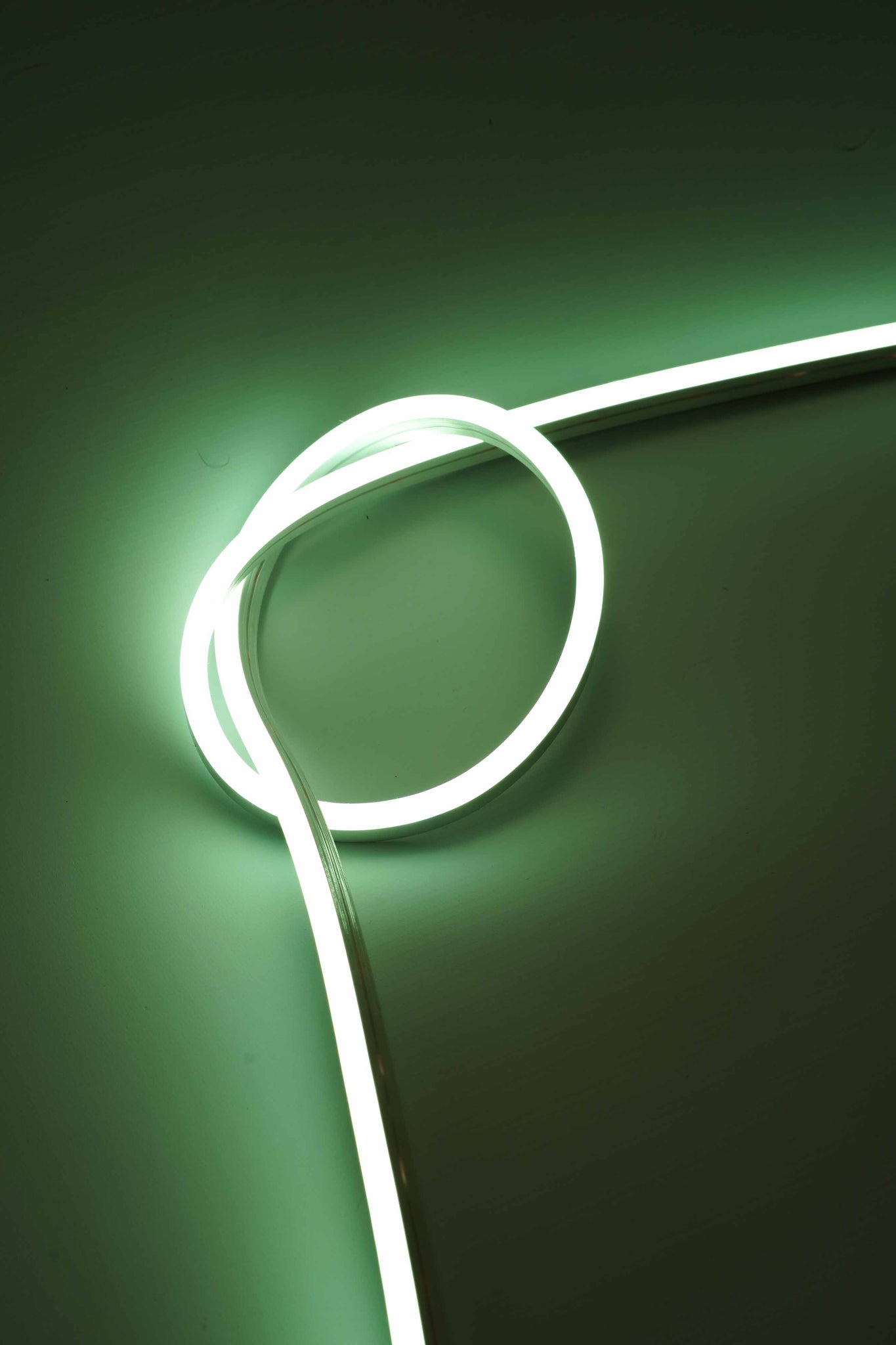

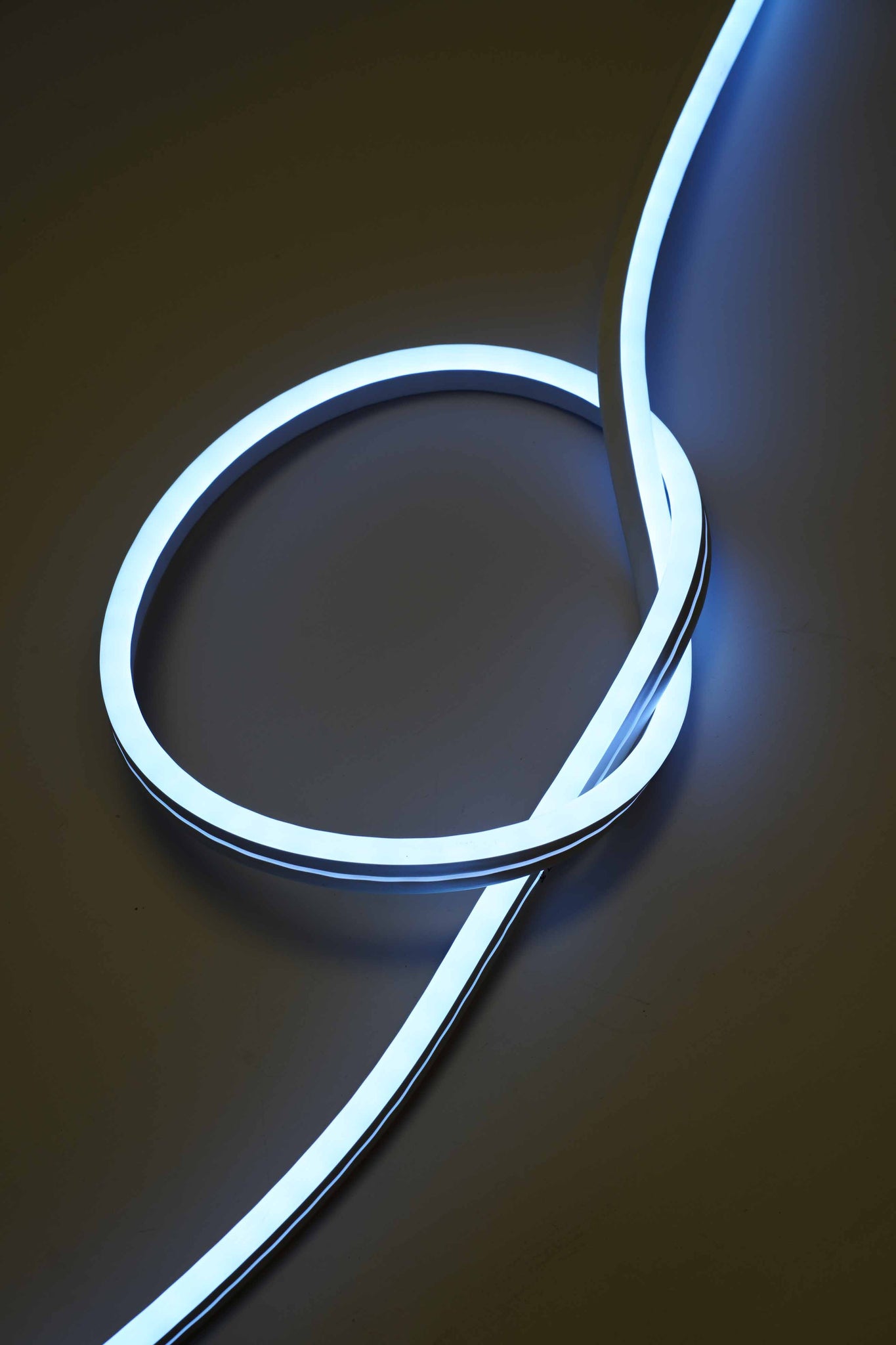

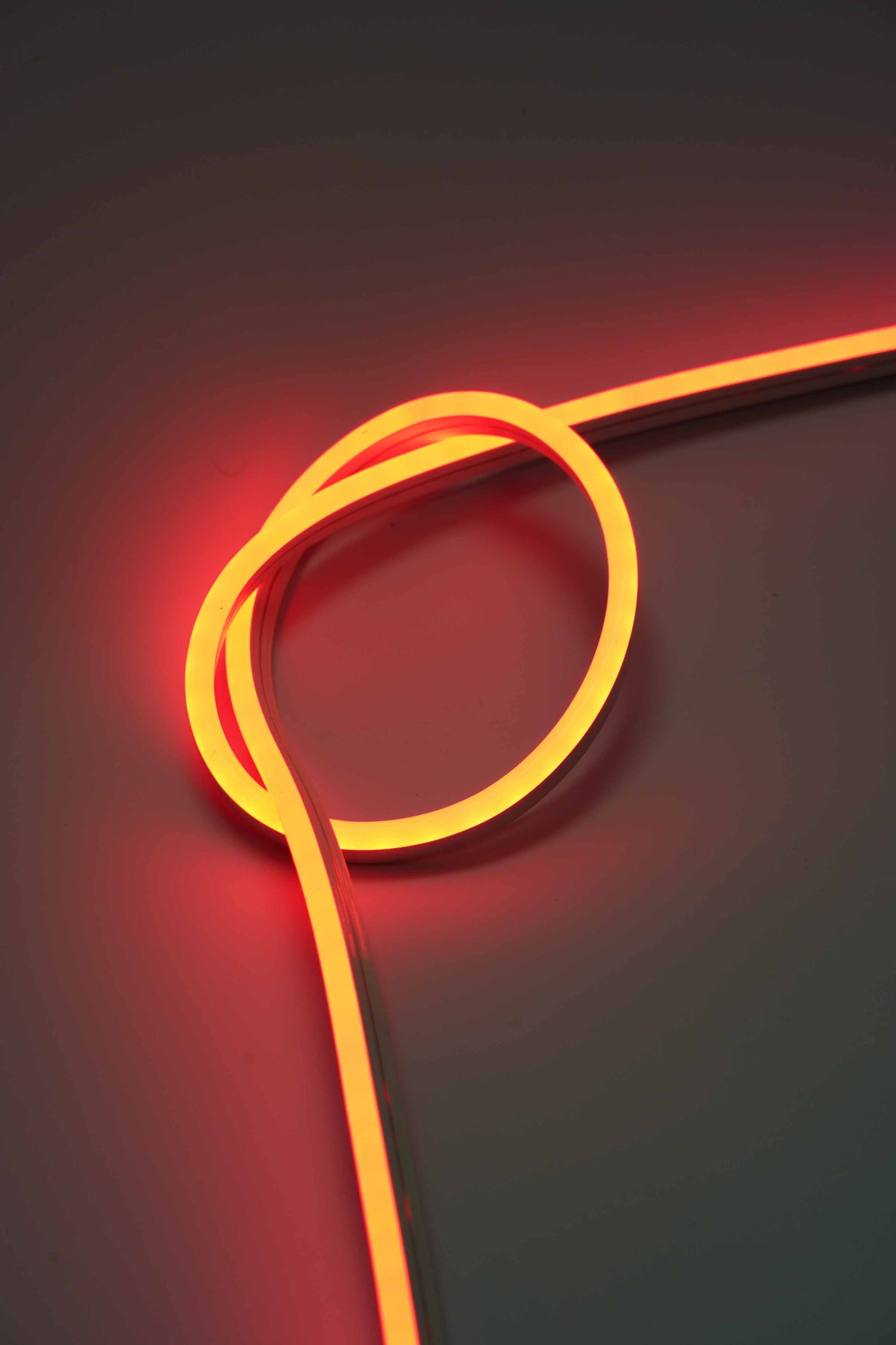

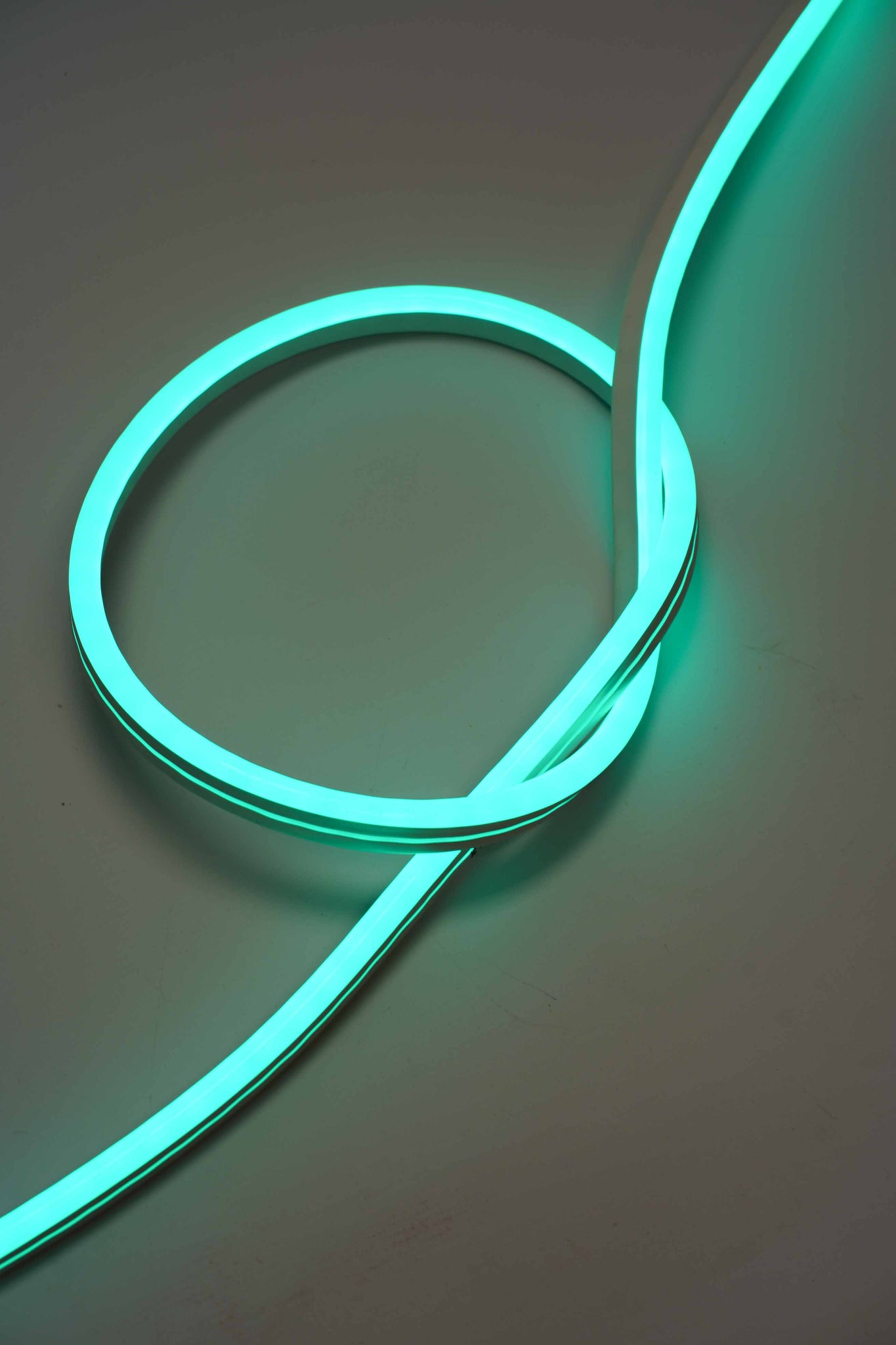

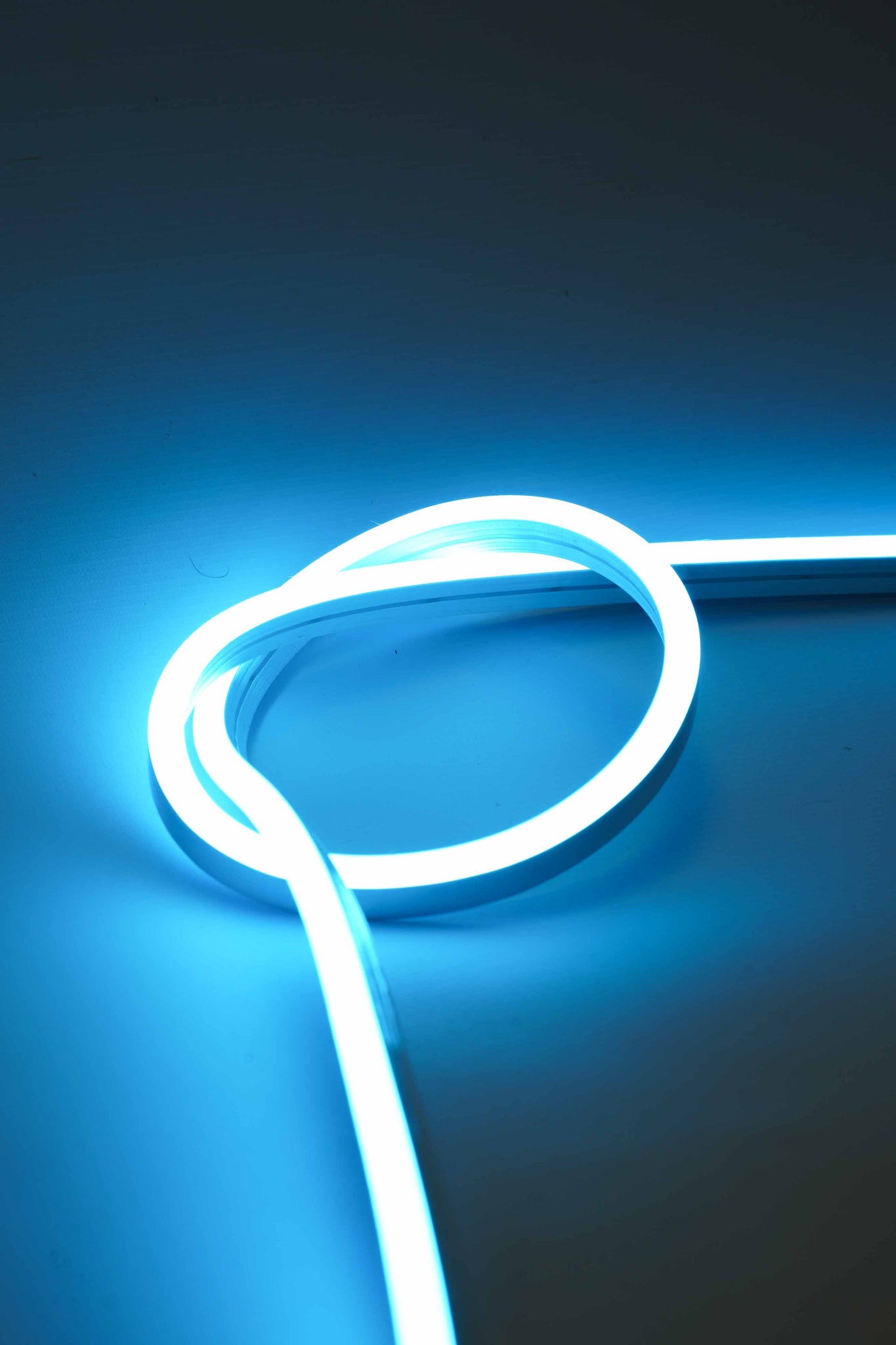

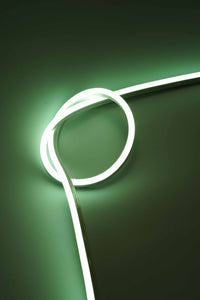

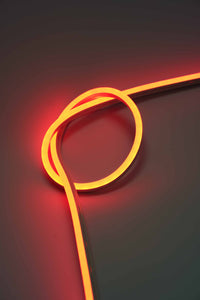

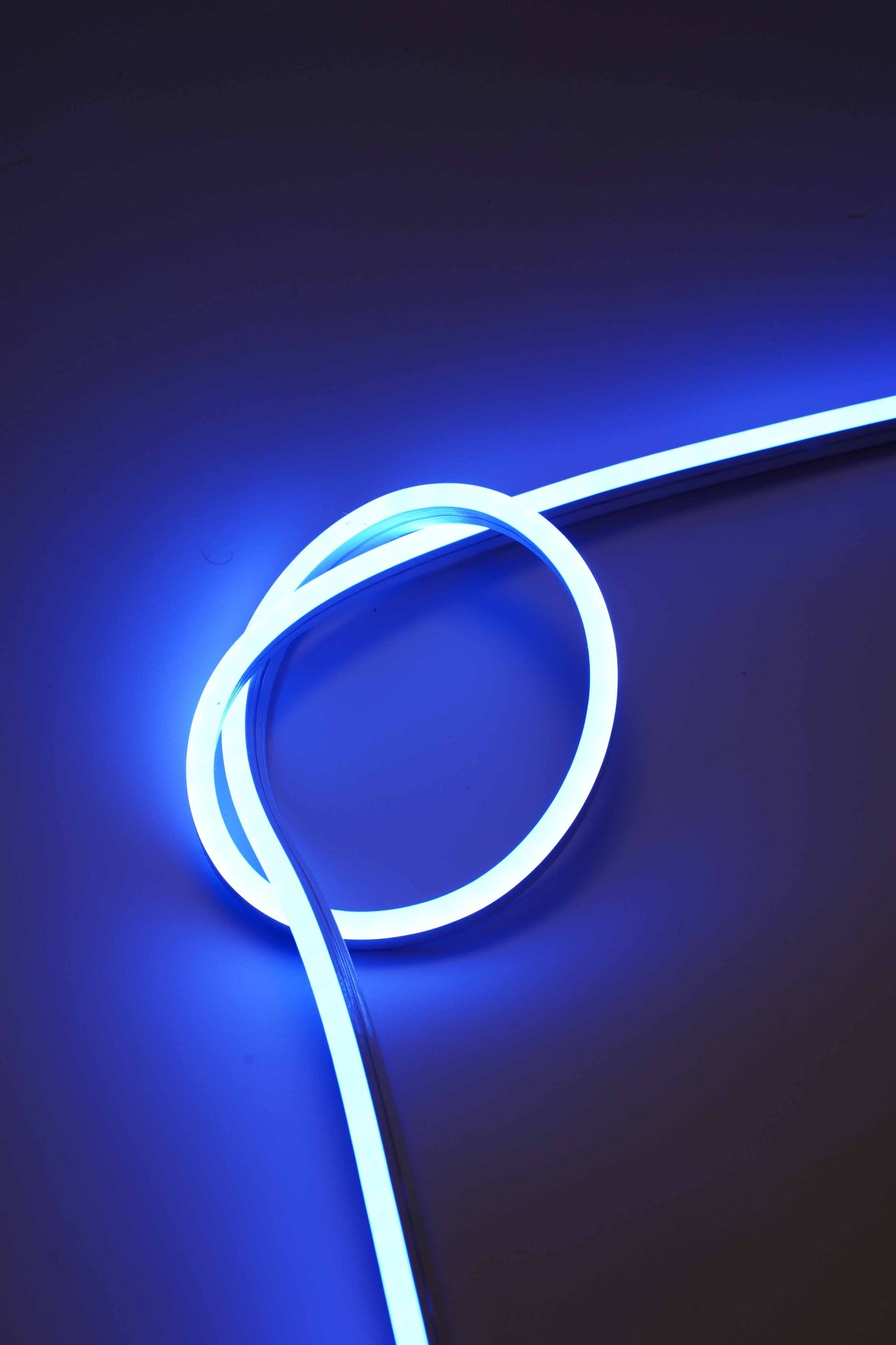

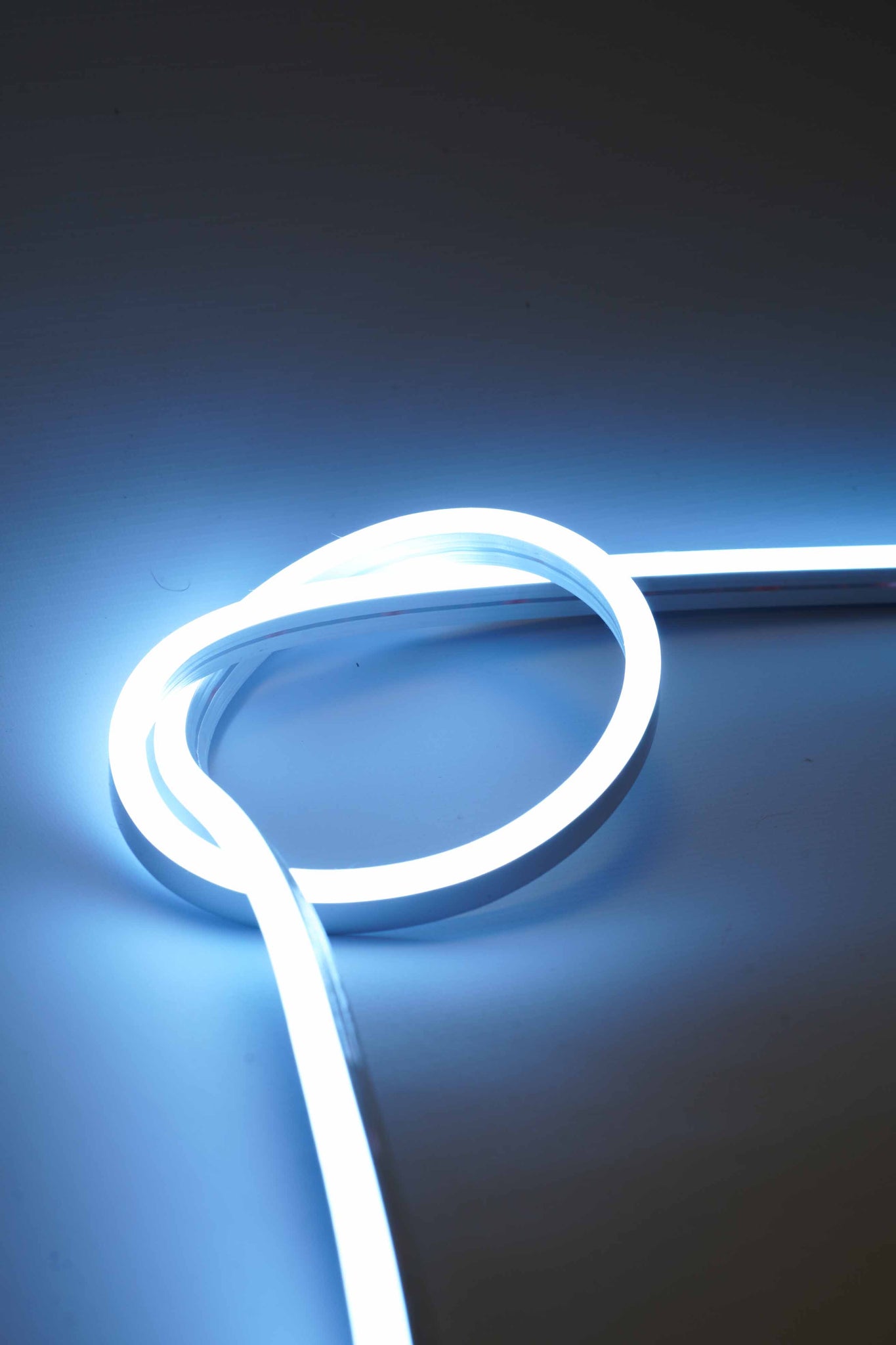

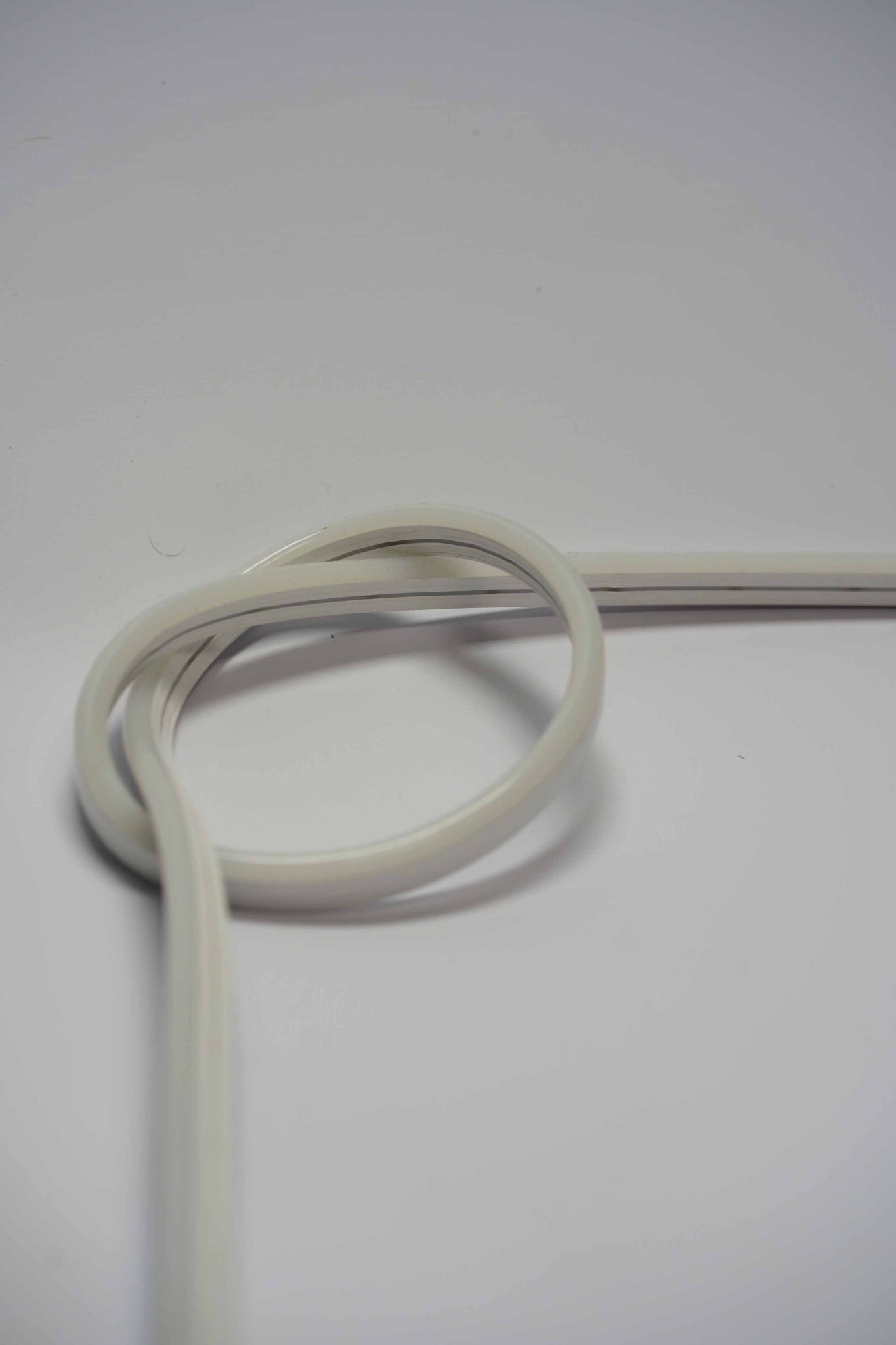

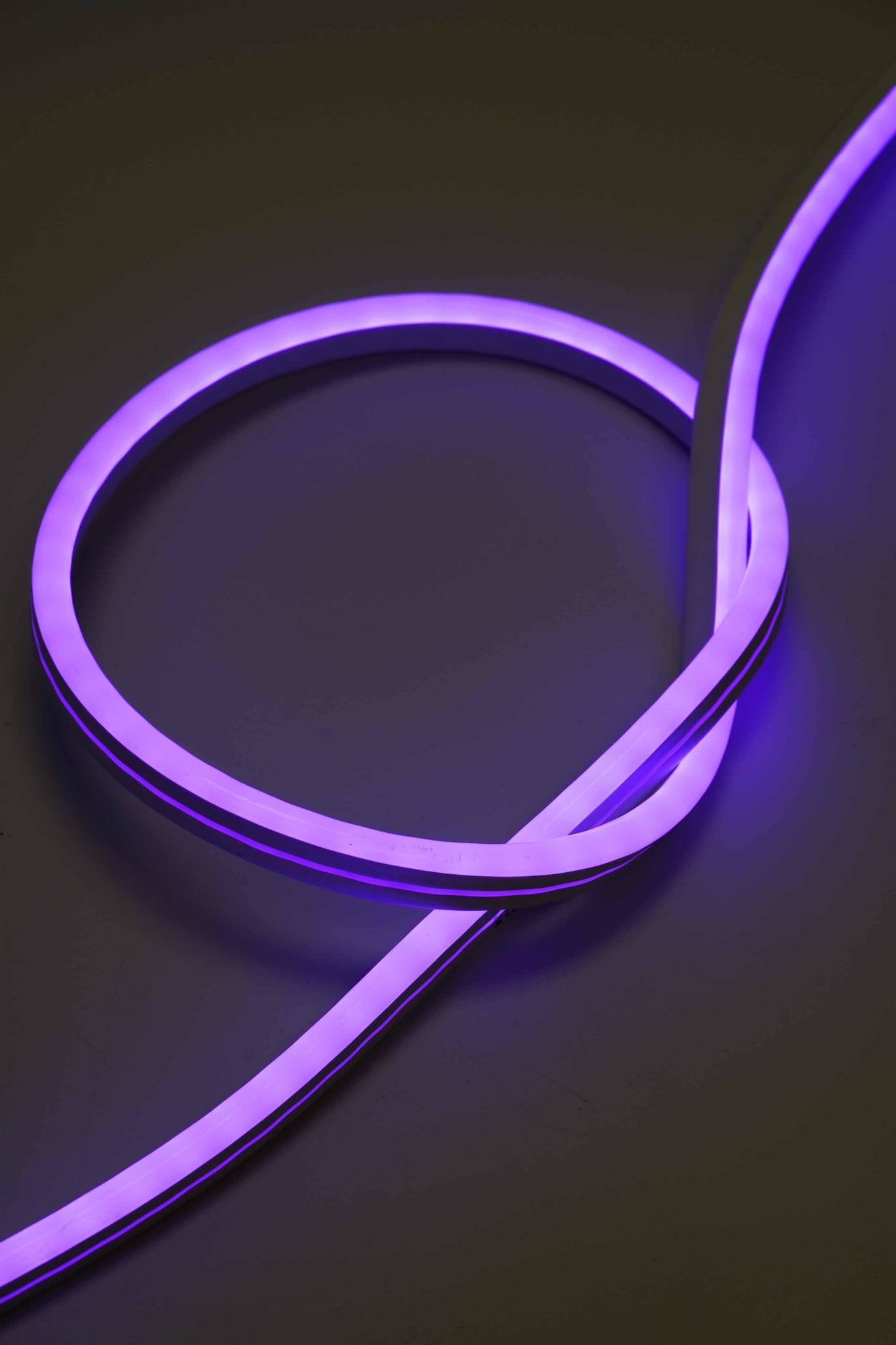

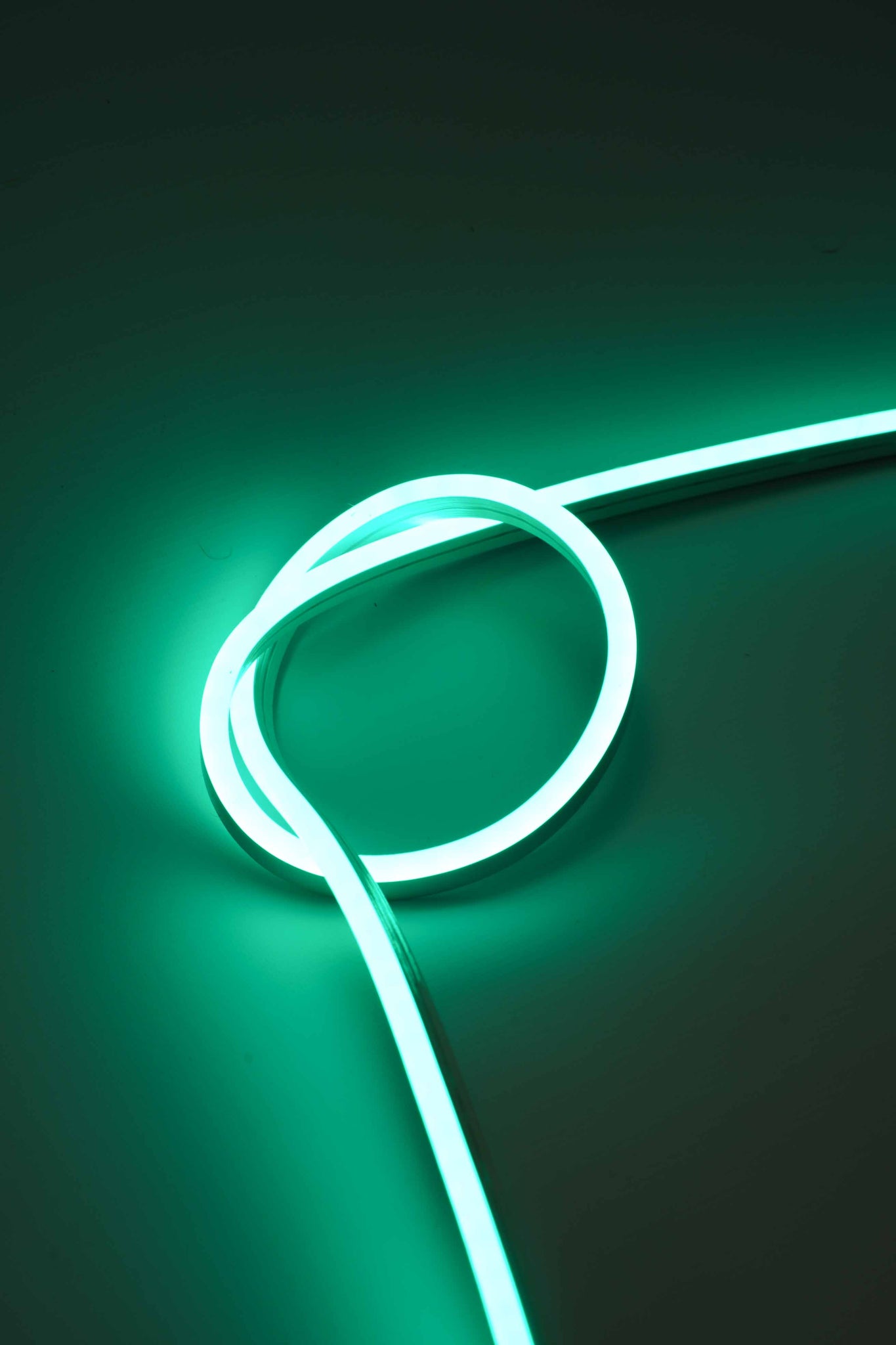

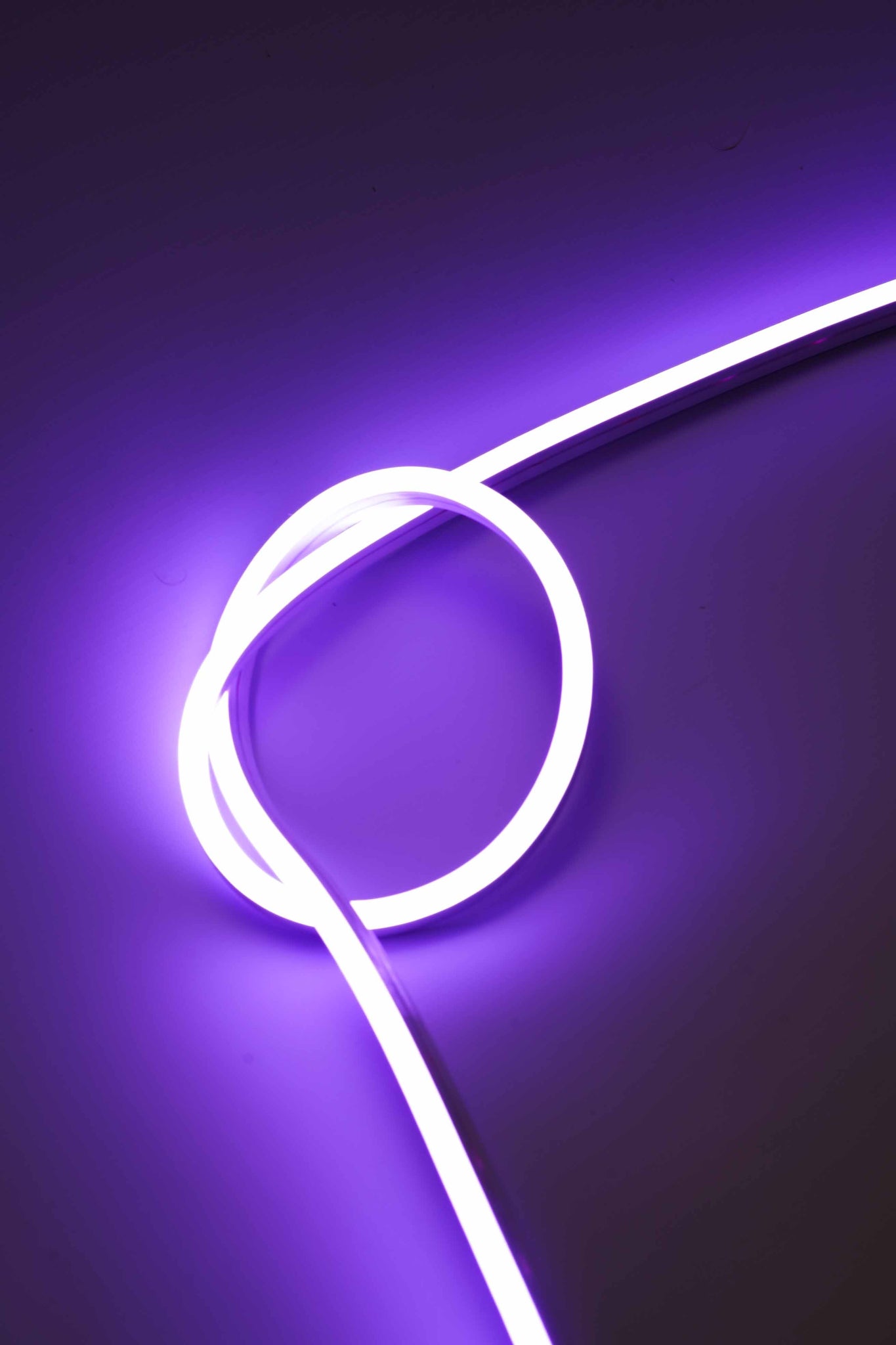

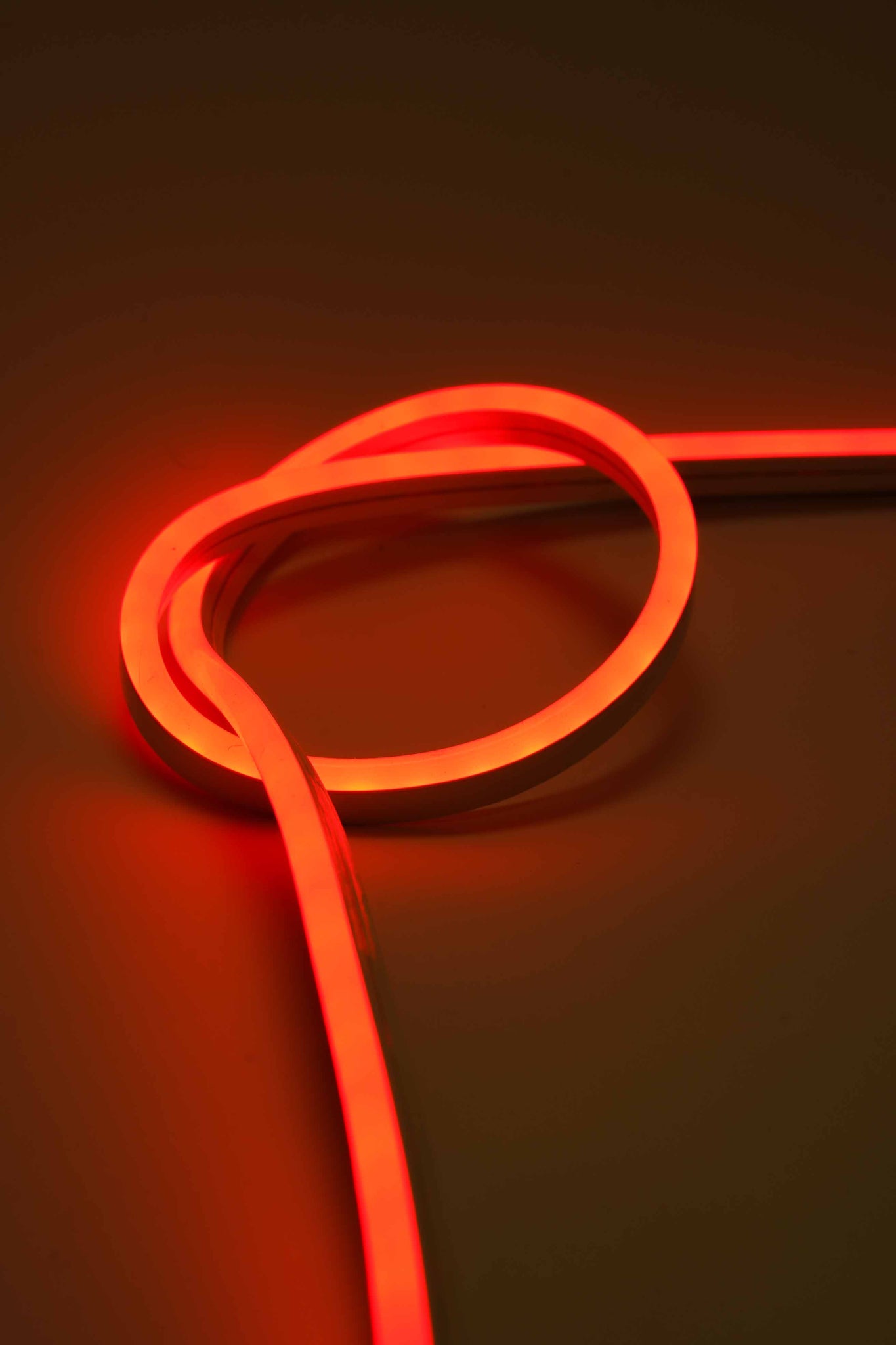

- RGB full colour LED Neon Flex
- Mini 11 x 19mm 24VDC
- Super Mini 8 x 15mm 12VDC
The cutting unit for the 11*19mm is 500mm (0.5 metres) and the cutting unit for the 8*15mm is 43mm (4.3 cm).
The Super Mini product is ideal for RGB Sign making, featuring a silicone outer and very small cutting lengths, whilst the Mini (11*19mm) product is ideal for larger RGB signage and longer architectural RGB runs.

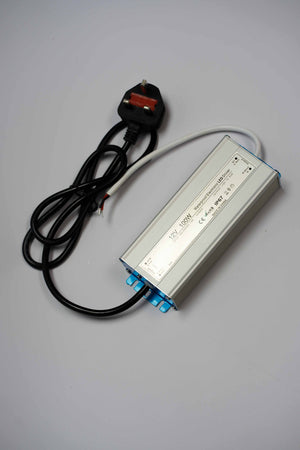

24v 11*19mm RGB accessories can be found here and power supplies for Neon Flex/Led Strip can be found here
The 12v product does not come with preset accessories, although we can supply 12v Power Supplies and RGB wireless control. The 12v product requires soldering and uses 4 core wires to power, whilst the 24v product uses the available accessories.
| Profile |  | RGB Profile | |
| LED's Per Metre | 60 | 78 (5050 type LED) | |
| Power Consumption | 24VDC 12-14 watts per metre | 12VDC 8-12 watts per metre | |
| Size (mm) | 11 x 19 mm | 8 x 15 mm | |
| Cutting Unit | 24VDC 500 mm | 12VDC 43 mm | |
| Lumens per/m | See individual colours |
| |
| Remote/Dimmable | Yes | Yes | |
| Max Run Length | 24VDC 20 metres | 12v 10 metres | |
| Price Per/M | £14.80 + VAT | £15.70 + VAT |
