This product requires soldering using a 2 core wire and is not compatible with our PVC Mini Pro accessories,
This range is supplemented with End Caps, Heat Shrink, 12v Power Supplies and 2 Core Wire Connectors.

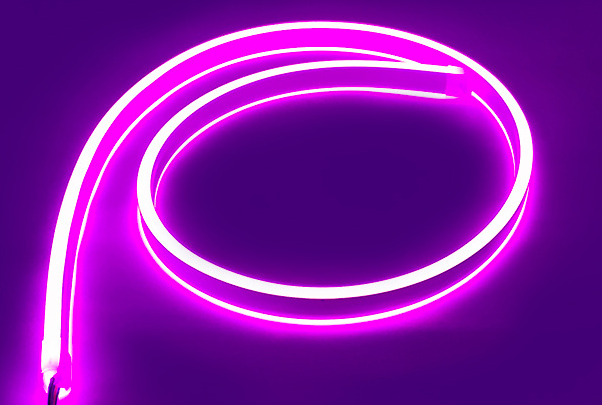

Silicone Mini Pro/Ultra Mini Pro Neon Flex is 12v, with dimensions of 8*15mm or 6*12mm. This product can be cut every 10mm (Mini Pro) & 10mm (Ultra Mini Pro) and has a minimum working length of 10mm/10mm. This is ideal for creating intricate sign design, set design and exhibition pieces. Silicone Neon Flex has the advantage of having virtually no bend radius limit which is ideal for intricate design and lettering, as well as other tight angles.
- Priced Per Metre
- 8x15mm (Silicone Mini Pro) or 6*12mm (Ultra Mini Pro)
- 10mm (Mini Pro) or 10mm (Ultra Mini Pro) minimum working length
- 10mm cut lengths (Mini Pro) or 10mm (Ultra Mini Pro) cut lengths
- 120 LED's per meter
- Images of our Silicone Mini Pro/Ultra Mini Pro Neon Flex in use
- Guide: How to make a Neon sign
Due to the complexity of traditional glass and neon technology, high production cost and inconvenient transportation and installation, the emergence of LED technology has completely changed the material and production process of neon lamps.
Silica gel has many advantages: It's environmentally-friendly, non-toxic, high and low temperature suitable, anti-acid and alkali, won't yellow in sunlight, soft, extremely flexible, long-lasting with excellent transmittance.
1) Excellent weather resistance:
It can be used in – 50 ℃ to 150 ℃ for a long-term project without embrittlement, deformation, softening or aging
2) Prominent Anti-UV ability
It can to be exposed to strong sunlight for over 5 years without yellowing and aging, retaining the colour of the silicone outer
3) Strong corrosion resistance:
It resists the corrosion from acids, alkalis and salt. It can be used in highly corrosive environments e.g. near the sea, chemical plants, Petrol stations and Marine facilities
4) High transmittance:
90% high transmittance of the silica gel reduces the optical loss of neon light.
5) Unique plasticity:
As its material is solid silica gel, which can be formed into various shapes and internal structures by mold.
6) Good thermal conductivity:
Silicon neon thermal conductivity is 0.27w /MK, while the thermal conductivity of PVC is 0.14w /MK.
